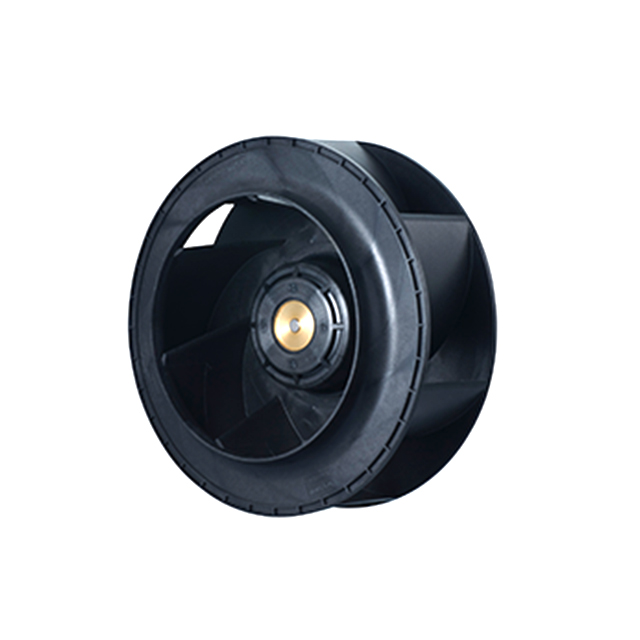

9W2TS48P0S001 - San Ace 225W Series

9W2TS48P0S001

Active
Sanyo Denki America Inc.

FAN IMP MTRZD 225X99MM 48VDC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumbering System Splash Proof Centrifugal FanHandling Instructions for Fan Motors
9W2TS48P0S001 - San Ace 225W Series

9W2TS48P0S001

Active
Sanyo Denki America Inc.

FAN IMP MTRZD 225X99MM 48VDC

Deep-Dive with AI

DocumentsNumbering System Splash Proof Centrifugal FanHandling Instructions for Fan Motors

Technical Specifications

Parameters and characteristics for this part

Specification9W2TS48P0S001
Air Flow830 CFM
Air Flow23.24 m³/min
Approval AgencycURus, TUV
Bearing TypeBall
Current Rating (Amps)2.45 A
Fan TypeMotorized Impellers
FeaturesSpeed Sensor (Tach), PWM Control
Ingress ProtectionIP56 - Dust Protected, Water Resistant
Lifetime @ Temp.40000 Hrs
Material - BladePlastic
Material - FrameAluminum
Noise72 dB(A)
Operating Temperature [Max]70 °C
Operating Temperature [Max]70 °C
Operating Temperature [Min]-25 °C
Operating Temperature [Min]-25 °C
Power (Watts)117.6 W
RPM3000 RPM
Size / Dimension [diameter]225 mm
Static Pressure635.2 Pa
Static Pressure2.55 in H2O
Termination4 Wire Leads
Voltage - Rated [custom]48 VDC
Voltage Range [Max]72 VDC
Voltage Range [Min]36 VDC
Weight1.5 kg
Weight3.3 lbs
Width [y]99 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBox 1$ 331.81

Description

General part information

9W2TS48 Series

Fan Motorized Impellers 48VDC Round - 225mm Dia Ball 830.0 CFM (23.24m³/min) 4 Wire Leads
