FBO40-12N

Active

IXYS

BRIDGE RECT 1P 1.2KV 40A I4-PAC

Search across all available documentation for this part.

Active

IXYS

BRIDGE RECT 1P 1.2KV 40A I4-PAC

Technical Specifications

Parameters and characteristics for this part

Specification	FBO40-12N

Current - Average Rectified (Io)	40 A
Current - Reverse Leakage @ Vr	40 µA
Diode Type	Single Phase
Mounting Type	Through Hole
Operating Temperature [Max]	175 ░C
Operating Temperature [Min]	-55 °C

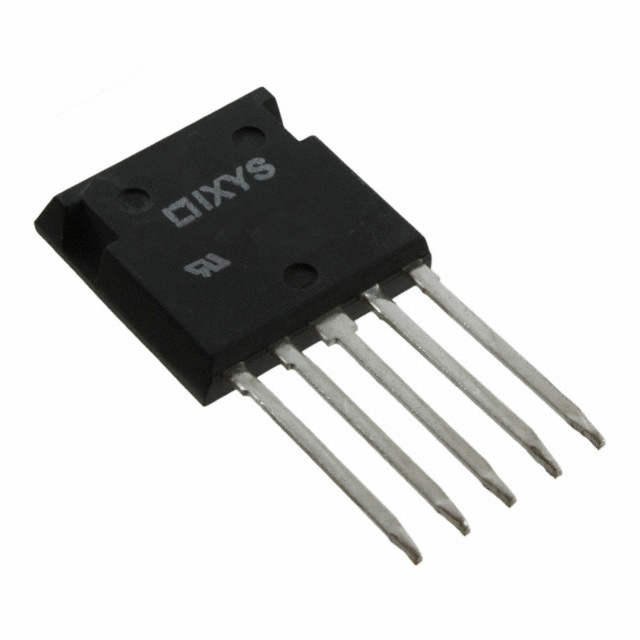

Package / Case	i4-Pac™-5
Supplier Device Package	ISOPLUS i4-PAC™
Technology	Standard
Voltage - Forward (Vf) (Max) @ If	1.17 V
Voltage - Peak Reverse (Max) [Max]	1.2 kV

Part	Current - Average Rectified (Io)	Mounting Type	Current - Reverse Leakage @ Vr	Package / Case	Diode Type	Technology	Voltage - Peak Reverse (Max) [Max]	Supplier Device Package	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Forward (Vf) (Max) @ If
IXYS FBO40-12N	40 A	Through Hole	40 µA	i4-Pac™-5	Single Phase	Standard	1.2 kV	ISOPLUS i4-PAC™	-55 °C	175 ░C	1.17 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Bridge Rectifier Single Phase Standard 1.2 kV Through Hole ISOPLUS i4-PAC™
