1411155

Active

Phoenix Contact

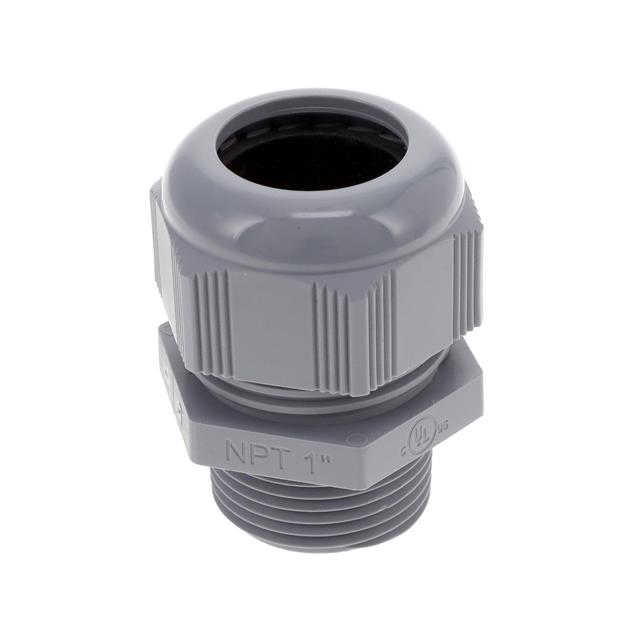

CABLE GLAND 18.01-25MM 1" NPT

Search across all available documentation for this part.

Active

Phoenix Contact

CABLE GLAND 18.01-25MM 1" NPT

Technical Specifications

Parameters and characteristics for this part

Specification	1411155

Color	Gray
Includes	Seal
Ingress Protection	IP66/IP68
Material	Polyamide (PA), Nylon
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max)	25 mm
Outside Cable Diameter (Max) [Max] [diameter]	0.984 in
Outside Cable Diameter (Min) [Min] [diameter]	0.709 in
Outside Cable Diameter (Min) [Min] [diameter]	18.01 mm
Thread Length	0.709 in
Thread Length	18.01 mm
Thread Size	1" NPT
Type	Cable Gland

Part	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]	Color	Type	Thread Size	Material	Includes	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max)	Operating Temperature [Max]	Operating Temperature [Min]	Thread Length	Thread Length	Ingress Protection
Phoenix Contact 1411155	0.709 in	18.01 mm	Gray	Cable Gland	1" NPT	Polyamide (PA) Nylon	Seal	0.984 in	25 mm	100 °C	-40 °C	0.709 in	18.01 mm	IP66/IP68

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA), Nylon 1" NPT Gray
