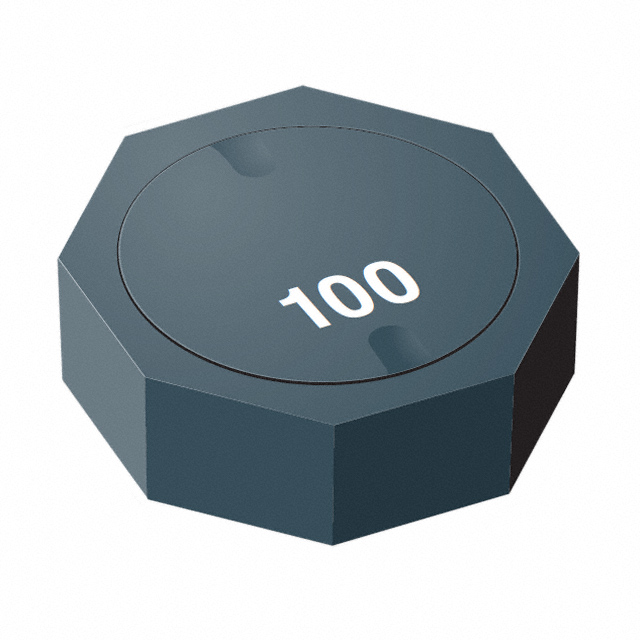

SRU1038A-151Y

Active

Bourns Inc.

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SRU1038A SERIES, 150 H, 30%, SHIELDED, 0.476 OHM, 900 MA

Search across all available documentation for this part.

Active

Bourns Inc.

SURFACE MOUNT POWER INDUCTOR, AEC-Q200 SRU1038A SERIES, 150 H, 30%, SHIELDED, 0.476 OHM, 900 MA

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Current - Saturation (Isat)	Frequency - Self Resonant	Ratings	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance	Tolerance	Type	Package / Case	Q @ Freq	Shielding	Material - Core	Inductance Frequency - Test	DC Resistance (DCR) [Max]	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	DC Resistance (DCR)
Bourns Inc. SRU1038A-3R5Y	Surface Mount	5.5 A	35 MHz	AEC-Q200	10 mm	0.394 in	10 mm	0.394 "	4.1 mm	0.161 "	3.5 µH	30 %	Drum Core Wirewound	Nonstandard	7.96 MHz 14	Shielded	Ferrite	100 kHz	15 mOhm	5.5 Amps	125 °C	-40 °C
Bourns Inc. SRU1038A-331Y	Surface Mount	520 mA	3 MHz	AEC-Q200	10 mm	0.394 in	10 mm	0.394 "	4.1 mm	0.161 "	330 µH	30 %	Drum Core Wirewound	Nonstandard	20 796 kHz	Shielded	Ferrite	100 kHz	1 Ohm	0.55 A	125 °C	-40 °C
Bourns Inc. SRU1038A-151Y	Surface Mount	800 mA	5 MHz	AEC-Q200	10 mm	0.394 in	10 mm	0.394 "	4.1 mm	0.161 "	150 µH	30 %	Drum Core Wirewound	Nonstandard	20 796 kHz	Shielded	Ferrite	100 kHz		900 mA	125 °C	-40 °C	476 mOhm
Bourns Inc. SRU1038A-220Y	Surface Mount	2.3 A	12 MHz	AEC-Q200	10 mm	0.394 in	10 mm	0.394 "	4.1 mm	0.161 "	22 µH	30 %	Drum Core Wirewound	Nonstandard	2.52 MHz 20	Shielded	Ferrite	100 kHz	75 mOhm	2.2 A	125 °C	-40 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

150 µH Shielded Drum Core, Wirewound Inductor 900 mA 476mOhm Max Nonstandard
