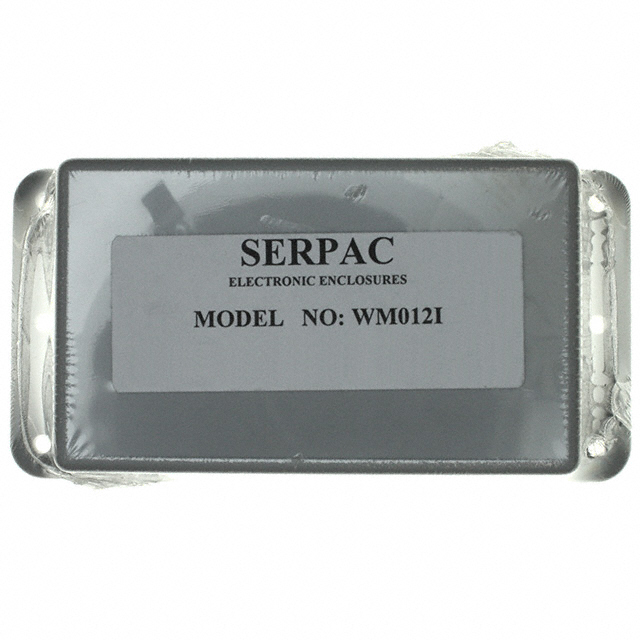

WM012I,GY

Active

Serpac

BOX ABS GRAY 3.6"L X 2.25"W

Deep-Dive with AI

Search across all available documentation for this part.

WM012I,GY

Active

Serpac

BOX ABS GRAY 3.6"L X 2.25"W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	WM012I,GY

Area (L x W)	52.3 cm²
Area (L x W)	8.1 in²
Color	Gray
Container Type	Box
Design	Cover Included
Features	PCB Supports, Wall Mount, Mounting Flange
Height [z]	40.64 mm
Height [z]	1.6 in
Material	Plastic, ABS
Material Flammability Rating	UL94 HB
Ratings	IP40, NEMA 1
Size / Dimension [x]	91.44 mm
Size / Dimension [x]	3.6 in
Size / Dimension [y]	57.15 mm
Size / Dimension [y]	2.25 in
Thickness	2.54 mm
Thickness	0.1 in
Weight	0.15 lbs
Weight	68.04 g

WM012 Series

Part	Design	Container Type	Height [z]	Height [z]	Weight	Weight	Thickness	Thickness	Color	Area (L x W)	Area (L x W)	Material Flammability Rating	Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Ratings	Features	Area (L x W) [custom]	Area (L x W) [custom]
Serpac WM012RI,GY	Cover Included	Box	40.64 mm	1.6 in	0.15 lbs	68.04 g	2.54 mm	0.1 in	Gray	53 cm²	8.22 in²	UL94 HB	Plastic ABS	3.62 in	57.66 mm	2.27 in	91.95 mm	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount
Serpac WM012R,GY	Cover Included	Box	40.64 mm	1.6 in	0.15 lbs	68.04 g	2.54 mm	0.1 in	Gray	53 cm²	8.22 in²	UL94 HB	Plastic ABS	3.62 in	57.66 mm	2.27 in	91.95 mm	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount
Serpac WM012I,GY	Cover Included	Box	40.64 mm	1.6 in	0.15 lbs	68.04 g	2.54 mm	0.1 in	Gray	52.3 cm²	8.1 in²	UL94 HB	Plastic ABS	3.6 in	57.15 mm	2.25 in	91.44 mm	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount
Serpac WM012I,AL	Cover Included	Box	40.64 mm	1.6 in	0.15 lbs	68.04 g	2.54 mm	0.1 in	Almond	52.3 cm²	8.1 in²	UL94 HB	Plastic ABS	3.6 in	57.15 mm	2.25 in	91.44 mm	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount
Serpac WM012,GY	Cover Included	Box	40.64 mm	1.6 in	0.15 lbs	68.04 g	2.54 mm	0.1 in	Gray	52.3 cm²	8.1 in²	UL94 HB	Plastic ABS	3.6 in	57.15 mm	2.25 in	91.44 mm	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount
Serpac WM012,BK	Cover Included	Box	40.64 mm	1.6 in	0.15 lbs	68.04 g	2.54 mm	0.1 in	Black	52.3 cm²	8.1 in²	UL94 HB	Plastic ABS	3.6 in	57.15 mm	2.25 in	91.44 mm	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	52.3 cm˛	8.1 in˛
Serpac WM012,AL	Cover Included	Box	40.64 mm	1.6 in	0.15 lbs	68.04 g	2.54 mm	0.1 in	Almond	52.3 cm²	8.1 in²	UL94 HB	Plastic ABS	3.6 in	57.15 mm	2.25 in	91.44 mm	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount
Serpac WM012R,BK	Cover Included	Box	40.64 mm	1.6 in	0.15 lbs	68.04 g	2.54 mm	0.1 in	Black	53 cm²	8.22 in²	UL94 HB	Plastic ABS	3.62 in	57.66 mm	2.27 in	91.95 mm	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount
Serpac WM012RI,AL	Cover Included	Box	40.64 mm	1.6 in	0.15 lbs	68.04 g	2.54 mm	0.1 in	Almond	53 cm²	8.22 in²	UL94 HB	Plastic ABS	3.62 in	57.66 mm	2.27 in	91.95 mm	IP40 NEMA 1	Front Access Mounting Flange PCB Supports Wall Mount
Serpac WM012I,BK	Cover Included	Box	40.64 mm	1.6 in	0.15 lbs	68.04 g	2.54 mm	0.1 in	Black			UL94 HB	Plastic ABS	3.6 in	57.15 mm	2.25 in	91.44 mm	IP40 NEMA 1	Mounting Flange PCB Supports Wall Mount	52.3 cm˛	8.1 in˛

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.81
		10	$ 7.69
		25	$ 6.99
		50	$ 6.01
		100	$ 5.32
		250	$ 4.48
		500	$ 3.92
		1000	$ 3.64

Description

General part information

WM012 Series

Box Plastic, ABS Gray Cover Included 3.600" L x 2.250" W (91.44mm x 57.15mm) X 1.600" (40.64mm)
