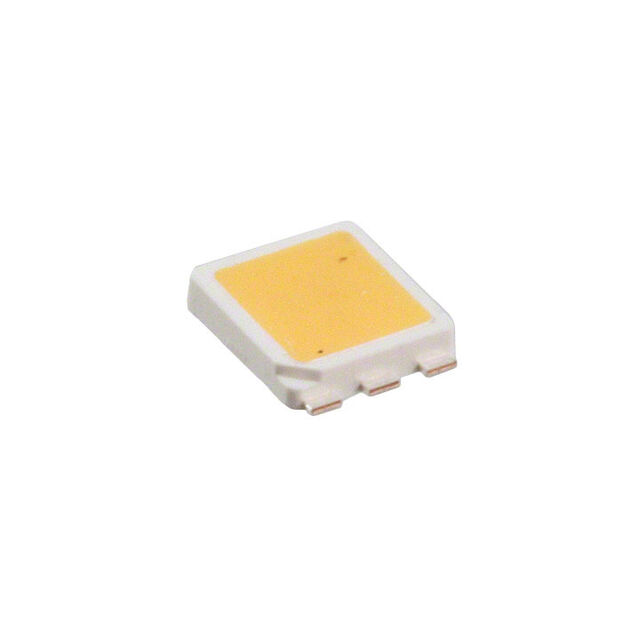

SMLW36WBFCW1
ObsoleteRohm Semiconductor
LED SMLV36 COOL WHITE 8000K 3120
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMLW36WBFCW1
ObsoleteRohm Semiconductor
LED SMLV36 COOL WHITE 8000K 3120
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMLW36WBFCW1 |
|---|---|
| CCT (K) | 8000 K |
| Color | Cool, White |
| Current - Max [Max] | 105 mA |
| Current - Test | 90 mA |
| Flux @ 25°C, Current - Test | 30 lm |
| Height - Seated (Max) [Max] | 1.2 mm |
| Height - Seated (Max) [Max] | 0.047 in |
| Lumens/Watt @ Current - Test | 98 lm/W |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, Gull Wing |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Voltage - Forward (Vf) (Typ) | 3.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
SMLW36 Series
LED Lighting SMLV36 White, Cool 8000K 3.4V 90mA 6-SMD, Gull Wing
