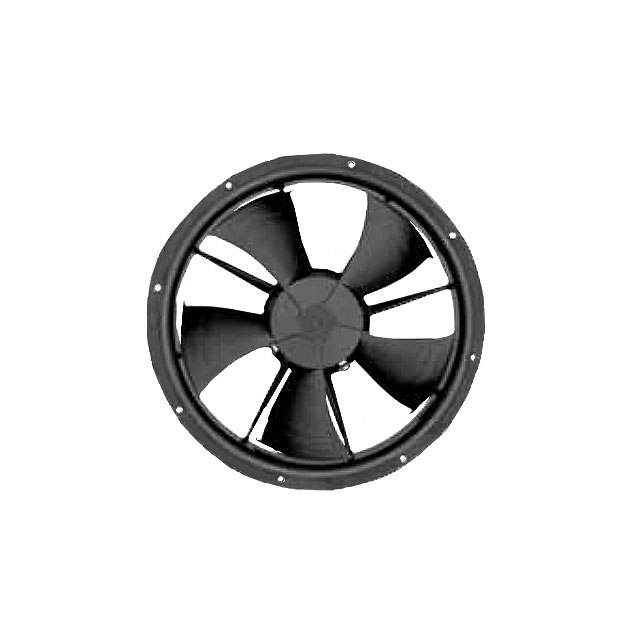

W1G230-EB97-01

Obsolete

ebm-papst Inc.

ESM (ENERGY SAVING MOTOR) FAN

Search across all available documentation for this part.

Obsolete

ebm-papst Inc.

ESM (ENERGY SAVING MOTOR) FAN

Technical Specifications

Parameters and characteristics for this part

Specification	W1G230-EB97-01

Approval Agency	UL, VDE, EAC, CE, CSA
Bearing Type	Ball
Current Rating (Amps)	0.35 A
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP)
Ingress Protection	IP55 - Dust Protected, Water Resistant
Material - Blade	Polyamide (PA), Nylon
Material - Frame	Polypropylene (PP)
Operating Temperature [Max]	50 °C
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-30 ░C
Operating Temperature [Min]	-30 °C
Power (Watts)	23 W
RPM	1500 RPM
Size / Dimension	Round
Size / Dimension [diameter]	280 mm
Static Pressure	36.1 Pa
Static Pressure	0.145 in H2O
Termination	3 Wire Leads with Splice Terminals
Voltage - Rated	115 VAC
Width [y]	78.5 mm

Part	RPM	Size / Dimension	Size / Dimension [diameter]	Approval Agency	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Termination	Static Pressure	Static Pressure	Current Rating (Amps)	Power (Watts)	Material - Frame	Features	Bearing Type	Fan Type	Width [y]	Ingress Protection	Material - Blade	Voltage - Rated
ebm-papst Inc. W1G230-EB97-01	1500 RPM	Round	280 mm	CE CSA EAC UL VDE	-30 ░C	50 °C	-30 °C	50 °C	3 Wire Leads with Splice Terminals	36.1 Pa	0.145 in H2O	0.35 A	23 W	Polypropylene (PP)	Thermal Overload Protector (TOP)	Ball	Tubeaxial	78.5 mm	IP55 - Dust Protected Water Resistant	Nylon Polyamide (PA)	115 VAC
ebm-papst Inc. W1G230-EB89-01	1000 RPM	Round	280 mm	CE CSA EAC UL VDE	-30 ░C	50 °C	-30 °C	50 °C	3 Wire Leads with Splice Terminals	36.1 Pa	0.145 in H2O	0.2 A	26 W	Polypropylene (PP)	Thermal Overload Protector (TOP)	Ball	Tubeaxial	78.5 mm	IP55 - Dust Protected Water Resistant	Nylon Polyamide (PA)	230 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Tubeaxial 115VAC Round - 280mm Dia Ball 3 Wire Leads with Splice Terminals
