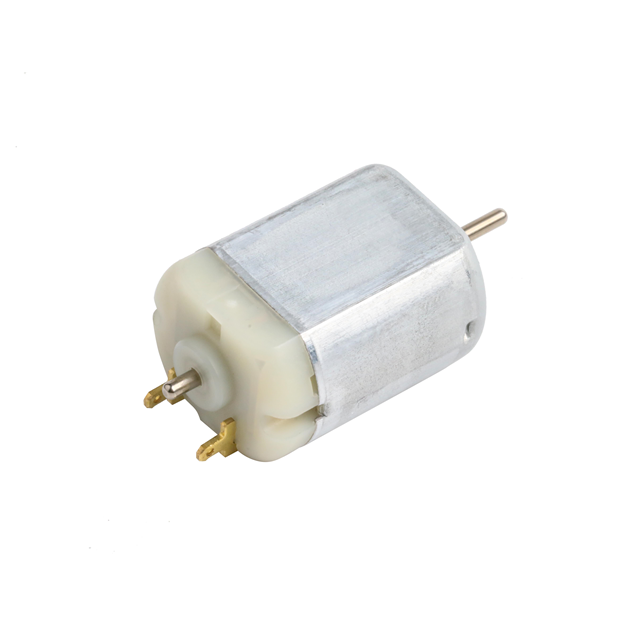

NF213G-302

Active

Johnson Motor

LOW VOLTAGE DC MOTORS

Search across all available documentation for this part.

Active

Johnson Motor

LOW VOLTAGE DC MOTORS

Technical Specifications

Parameters and characteristics for this part

Specification	NF213G-302

Diameter - Shaft [diameter]	2 mm
Diameter - Shaft [diameter]	0.079 in
Function	Standard
Motor Type	Brushed
Operating Temperature [Max] [custom]	55 °C
Operating Temperature [Min] [custom]	-10 °C
RPM	6000 RPM
Size / Dimension [diameter]	22.86 mm
Size / Dimension [diameter]	22.86 mm
Termination Style	Solder Tab
Torque - Max Momentary (oz-in / mNm)	0.48 oz-in
Torque - Max Momentary (oz-in / mNm)	3.42 mNm
Torque - Rated (oz-in / mNm)	0.48 oz-in
Torque - Rated (oz-in / mNm)	3.42 mNm
Type	DC Motor
Voltage - Rated	24 VDC
Weight	28.35 g
Weight	0.063 lb

Part	Function	Diameter - Shaft [diameter]	Diameter - Shaft [diameter]	Voltage - Rated	RPM	Type	Torque - Max Momentary (oz-in / mNm)	Torque - Max Momentary (oz-in / mNm)	Motor Type	Torque - Rated (oz-in / mNm)	Torque - Rated (oz-in / mNm)	Size / Dimension [diameter]	Size / Dimension [diameter]	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Termination Style	Weight	Weight
Johnson Motor NF213G-302	Standard	2 mm	0.079 in	24 VDC	6000 RPM	DC Motor	0.48 oz-in	3.42 mNm	Brushed	0.48 oz-in	3.42 mNm	22.86 mm	22.86 mm	55 °C	-10 °C	Solder Tab	28.35 g	0.063 lb

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Brushed DC Motor Standard 6000 RPM 7.4W 24VDC
