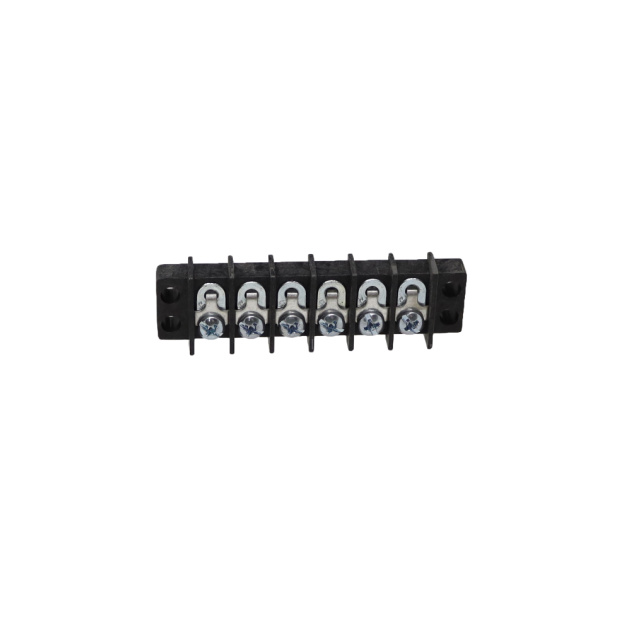

1506-Y
ActiveCurtis Industries
CONN BARRIER STRIP 6CIRC 0.375"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1506-Y
ActiveCurtis Industries
CONN BARRIER STRIP 6CIRC 0.375"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1506-Y |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | PC Pin |
| Current Rating (Amps) | 20 A |
| Features | Flange |
| Material - Insulation | Polyphenylene Oxide (PPO) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Chassis, Panel, Through Hole |
| Number of Circuits | 6 |
| Number of Rows | 2 |
| Number of Wire Entries | 12 |
| Operating Temperature | 110 °C |
| Pitch [x] | 9.53 mm |
| Pitch [x] | 0.375 in |
| Terminal Block Type | Barrier Block |
| Terminal Screw Material | Steel |
| Top Termination | Screws |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 10 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.14 | |
| 10 | $ 4.45 | |||
| 25 | $ 4.11 | |||
| 50 | $ 3.93 | |||
| 100 | $ 3.80 | |||
| 250 | $ 3.67 | |||
| 500 | $ 3.60 | |||
| 1000 | $ 3.54 | |||
Description
General part information
1506 Series
6 Circuit 0.375" (9.53mm) Barrier Block Connector Screws
