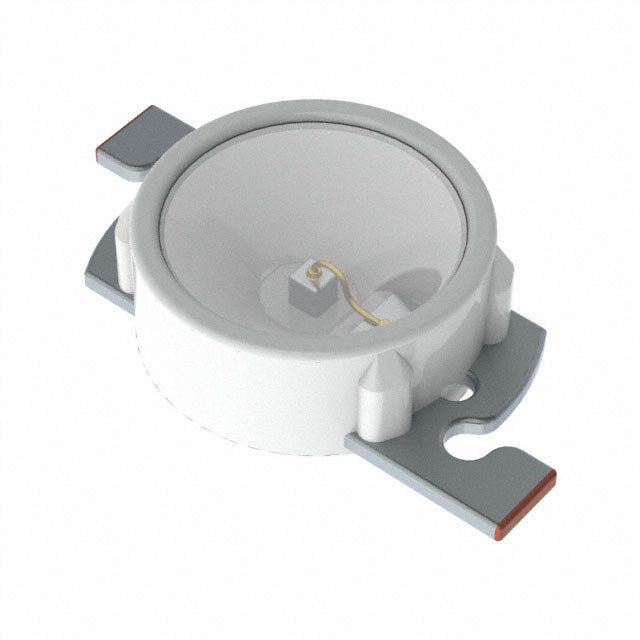

LO P47F-V2BB-24-1
Activeams-OSRAM USA INC.
LED ORANGE CLEAR 2SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LO P47F-V2BB-24-1
Activeams-OSRAM USA INC.
LED ORANGE CLEAR 2SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LO P47F-V2BB-24-1 |
|---|---|
| Configuration | Standard |
| Current - Test | 30 mA |
| Height (Max) [Max] | 0.88 mm |
| Lens Color | Colorless |
| Lens Size | T-3/4 |
| Lens Size [diameter] | 2 mm |
| Lens Transparency | Clear |
| Millicandela Rating | 1850 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 2-PLCC |
| Size / Dimension [diameter] | 1.9 mm |
| Supplier Device Package | 2-PLCC |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 2.25 V |
| Wavelength - Dominant | 606 nm |
| Wavelength - Peak | 610 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LOP47F Series
Orange 606nm LED Indication - Discrete 2.25V 2-PLCC
