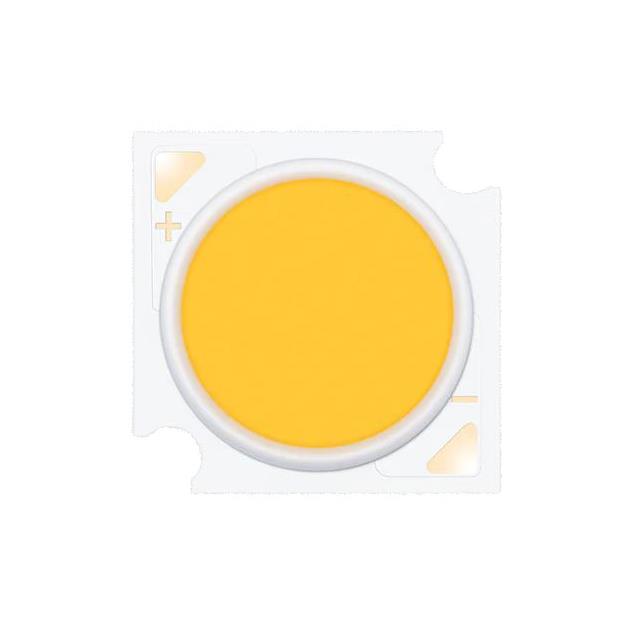

SPHWHAHDNH25YZV3D4

Active

Samsung Semiconductor, Inc.

LED COB D GEN4 WM WHT SQ 3000K

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

SPHWHAHDNH25YZV3D4

Active

Samsung Semiconductor, Inc.

LED COB D GEN4 WM WHT SQ 3000K

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SPHWHAHDNH25YZV3D4

CCT (K)	3000 K
Color	White, Warm
Configuration	Square
CRI (Color Rendering Index)	80
Current - Max [Max]	2.3 A
Current - Test	900 mA
Height [z]	1.7 mm
Lens Type	Flat
Light Emitting Surface (LES) [diameter]	14.5 mm
Luminous Flux @ Current/Temperature	5044 lm
Size / Dimension [x]	19 mm
Size / Dimension [y]	19 mm
Temperature - Test	85 °C
Type	Chip On Board (COB)
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	33.6 V

SPHWHAHDNH25 Series

Part	Temperature - Test	Size / Dimension [y]	Size / Dimension [x]	Lumens/Watt @ Current - Test	Current - Test	Luminous Flux @ Current/Temperature	Viewing Angle	Type	Height [z]	Configuration	CCT (K)	Voltage - Forward (Vf) (Typ)	Current - Max [Max]	Light Emitting Surface (LES) [diameter]	CRI (Color Rendering Index)	Color	Lens Type
Samsung Semiconductor, Inc. SPHWHAHDNH25YZT3C2	85 °C	19 mm	19 mm	132 lm/W	900 mA	4154 lm	115 °	Chip On Board (COB)	1.5 mm	Square	4000 K	35 V	1.38 A	11.5 mm	80	Neutral White	Flat
Samsung Semiconductor, Inc. SPHWHAHDNH25YZT3DC	85 °C	19 mm	19 mm	170 lm/W	900 mA	5150 lm	115 °	Chip On Board (COB)	1.5 mm	Square	4000 K	33.7 V	1.8 A	14.5 mm	80	Neutral White	Flat
Samsung Semiconductor, Inc. SPHWHAHDNH25YZV3DC	85 °C	19 mm	19 mm	161 lm/W	900 mA	4875 lm	115 °	Chip On Board (COB)	1.5 mm	Square	3000 K	33.7 V	1.8 A	14.5 mm	80	Warm White	Flat
Samsung Semiconductor, Inc. SPHWHAHDNH25YZU3D3	85 °C	19 mm	19 mm	163 lm/W	900 mA	4989 lm	115 °	Chip On Board (COB)	1.5 mm	Square	3500 K	34 V	2.3 A	14.5 mm	80	Warm White	Flat
Samsung Semiconductor, Inc. SPHWHAHDNH25YZV3D4	85 °C	19 mm	19 mm		900 mA	5044 lm	115 °	Chip On Board (COB)	1.7 mm	Square	3000 K	33.6 V	2.3 A	14.5 mm	80	Warm White	Flat
Samsung Semiconductor, Inc. SPHWHAHDNH25YZQ3D3	85 °C	19 mm	19 mm	168 lm/W	900 mA	5132 lm	115 °	Chip On Board (COB)	1.5 mm	Square	5700 K	34 V	2.3 A	14.5 mm	80	Cool White	Flat
Samsung Semiconductor, Inc. SPHWHAHDNH25YZV3C2	85 °C	19 mm	19 mm	126 lm/W	900 mA		115 °	Chip On Board (COB)	1.5 mm	Square	3000 K	35 V	1.38 A	11.5 mm	80	Warm White	Flat
Samsung Semiconductor, Inc. SPHWHAHDNH25YZU3DB	85 °C	19 mm	19 mm	156 lm/W	900 mA	4779 lm	115 °	Chip On Board (COB)	1.5 mm	Square	3500 K	34 V	1.8 A	14.5 mm	80	Warm White	Flat
Samsung Semiconductor, Inc. SPHWHAHDNH25YZW2D2	85 °C	19 mm	19 mm	142 lm/W	900 mA	4418 lm	115 °	Chip On Board (COB)	1.5 mm	Square	2700 K	34.6 V	2.3 A	14.5 mm	80	Warm White	Flat
Samsung Semiconductor, Inc. SPHWHAHDNH25YZW3DC	85 °C	19 mm	19 mm	155 lm/W	900 mA	4686 lm	115 °	Chip On Board (COB)	1.5 mm	Square	2700 K	33.7 V	1.8 A	14.5 mm	80	Warm White	Flat

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 8.19
		10	$ 6.23
		250	$ 4.78
		500	$ 4.59
		1000	$ 4.42
		2000	$ 4.29

Description

General part information

SPHWHAHDNH25 Series

LED Lighting COBs Engines Modules Chip On Board (COB) COB D Gen4 White, Warm Square
