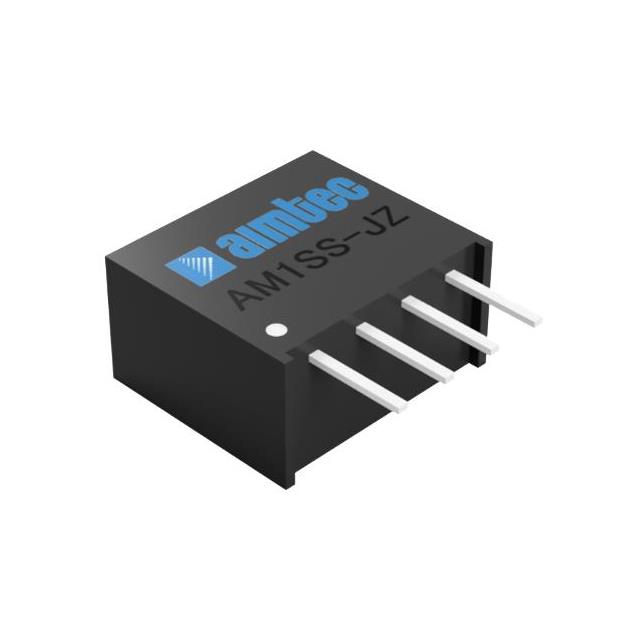

AM1SS-0524SJZ

Obsolete

aimtec

DC DC CONVERTER 24V 1W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM1SS-0524SJZ

Obsolete

aimtec

DC DC CONVERTER 24V 1W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM1SS-0524SJZ

Applications	ITE (Commercial)
Approval Agency	cULus, cURus
Current - Output (Max) [Max]	42 mA
Efficiency	85 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Package / Case	4-SIP Module
Size / Dimension [x]	11.6 mm
Size / Dimension [x]	0.46 in
Size / Dimension [y]	6 mm
Size / Dimension [y]	0.24 "
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	5.5 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	24 V

AM1SS Series

Part	Voltage - Input (Min) [Min]	Voltage - Input (Max) [Max]	Type	Voltage - Isolation	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Efficiency	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Voltage - Output 1	Number of Outputs	Current - Output (Max) [Max]	Supplier Device Package	Current - Output (Max)	Approval Agency
aimtec AM1SS-0305S-NZ	2.97 V	3.63 V	Isolated Module	1.5 kV	ITE (Commercial)	-40 °C	105 C	Through Hole	4-SIP Module	76 %	0.4 "	11.6 mm	0.46 in	10.2 mm	6 mm	0.24 "	5 V	1	200 mA
aimtec AM1SS-1515S-NZ	13.5 V	16.5 V	Isolated Module	1.5 kV	ITE (Commercial)	-40 °C	105 C	Through Hole	4-SIP Module	81 %	0.4 "	11.6 mm	0.46 in	10.2 mm	6 mm	0.24 "	15 V	1	67 mA	4-SIP
aimtec AM1SS-0515SZ	4.5 V	5.5 V	Isolated Module	1000 V	ITE (Commercial)	-40 °C	85 °C	Through Hole	4-SIP Module	73 %	0.4 "	11.7 mm	0.46 in	10.2 mm	6 mm	0.24 "	15 V	1	66.6 mA
aimtec AM1SS-1205SZ	10.8 V	13.2 V	Isolated Module	1000 V	ITE (Commercial)	-40 °C	85 °C	Through Hole	4-SIP Module	76 %	0.4 "	11.7 mm	0.46 in	10.2 mm	6 mm	0.24 "	5 V	1	200 mA
aimtec AM1SS-1212SH30Z	10.8 V	13.2 V	Isolated Module	3000 V	ITE (Commercial)	-40 °C	85 °C	Through Hole	4-SIP Module	78 %	0.4 "	11.7 mm	0.46 in	10.2 mm	6 mm	0.24 "	12 V	1			83.3 mA
aimtec AM1SS-2405S-NZ	21.6 V	26.4 V	Isolated Module	1.5 kV	ITE (Commercial)	-40 °C	105 C	Through Hole	4-SIP Module	80 %	0.4 "	11.6 mm	0.46 in	10.2 mm	6 mm	0.24 "	5 V	1	200 mA	4-SIP
aimtec AM1SS-2415S-NZ	21.6 V	26.4 V	Isolated Module	1.5 kV	ITE (Commercial)	-40 °C	105 C	Through Hole	4-SIP Module		0.4 "	11.6 mm	0.46 in	10.2 mm	6 mm	0.24 "	15 V	1	67 mA	4-SIP
aimtec AM1SS-2424S-NZ	21.6 V	26.4 V	Isolated Module	1.5 kV	ITE (Commercial)	-40 °C	105 C	Through Hole	4-SIP Module		0.4 "	11.6 mm	0.46 in	10.2 mm	6 mm	0.24 "	24 V	1	42 mA	4-SIP
aimtec AM1SS-0524SJZ	4.5 V	5.5 V	Isolated Module	1.5 kV	ITE (Commercial)	-40 °C	105 ░C	Through Hole	4-SIP Module	85 %	0.4 "	11.6 mm	0.46 in	10.2 mm	6 mm	0.24 "	24 V	1	42 mA			cULus cURus
aimtec AM1SS-1215SH30Z	10.8 V	13.2 V	Isolated Module	3000 V	ITE (Commercial)	-40 °C	85 °C	Through Hole	4-SIP Module	75 %	0.4 "	11.7 mm	0.46 in	10.2 mm	6 mm	0.24 "	15 V	1	66.6 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.54
		10	$ 2.24
		25	$ 2.12
		50	$ 2.04

Description

General part information

AM1SS Series

Isolated Module DC DC Converter 1 Output 24V 42mA 4.5V - 5.5V Input
