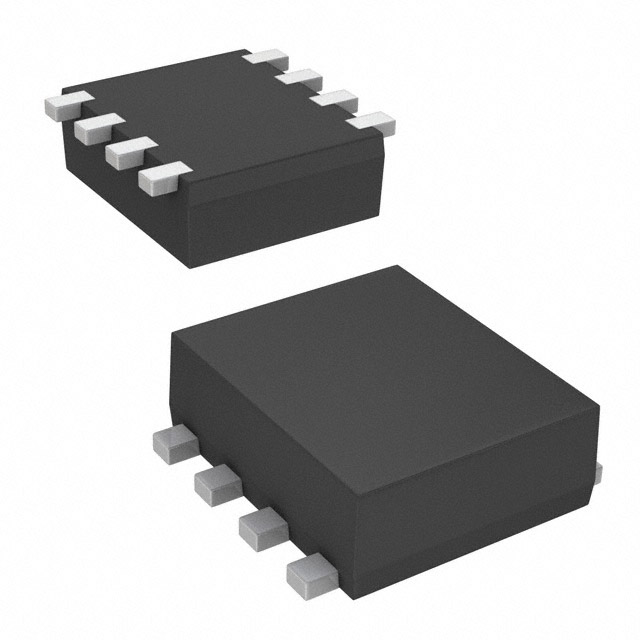

MTM684110LBF

Obsolete

Panasonic Industrial Automation Sales

MOSFET 2P-CH 12V 4.8A WMINI8-F1

Search across all available documentation for this part.

Obsolete

Panasonic Industrial Automation Sales

MOSFET 2P-CH 12V 4.8A WMINI8-F1

Technical Specifications

Parameters and characteristics for this part

Specification	MTM684110LBF

Configuration	2 P-Channel
Current - Continuous Drain (Id) @ 25°C	4.8 A
Drain to Source Voltage (Vdss)	12 V
Input Capacitance (Ciss) (Max) @ Vds [Max]	1400 pF
Mounting Type	Surface Mount
Operating Temperature	150 °C
Power - Max [Max]	1 W
Rds On (Max) @ Id, Vgs	32 mOhm
Supplier Device Package	WMini8-F1
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	1 V

Part	Mounting Type	Rds On (Max) @ Id, Vgs	Input Capacitance (Ciss) (Max) @ Vds [Max]	Operating Temperature	Configuration	Power - Max [Max]	Technology	Vgs(th) (Max) @ Id	Current - Continuous Drain (Id) @ 25°C	Supplier Device Package	Drain to Source Voltage (Vdss)
Panasonic Industrial Automation Sales MTM684110LBF	Surface Mount	32 mOhm	1400 pF	150 °C	2 P-Channel	1 W	MOSFET (Metal Oxide)	1 V	4.8 A	WMini8-F1	12 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Mosfet Array 12V 4.8A 1W Surface Mount WMini8-F1
