PC81713NIP1B

Active

SHARP/Socle Technology

OPTOISOLATOR

Search across all available documentation for this part.

Active

SHARP/Socle Technology

OPTOISOLATOR

Technical Specifications

Parameters and characteristics for this part

Specification	PC81713NIP1B

Current - DC Forward (If) (Max) [Max]	10 mA
Current - Output / Channel	50 mA
Current Transfer Ratio (Max)	600 %
Current Transfer Ratio (Min) [Min]	100 %
Input Type	DC
Mounting Type	Surface Mount
Number of Channels	1
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-30 ░C
Output Type	1.81 mOhm

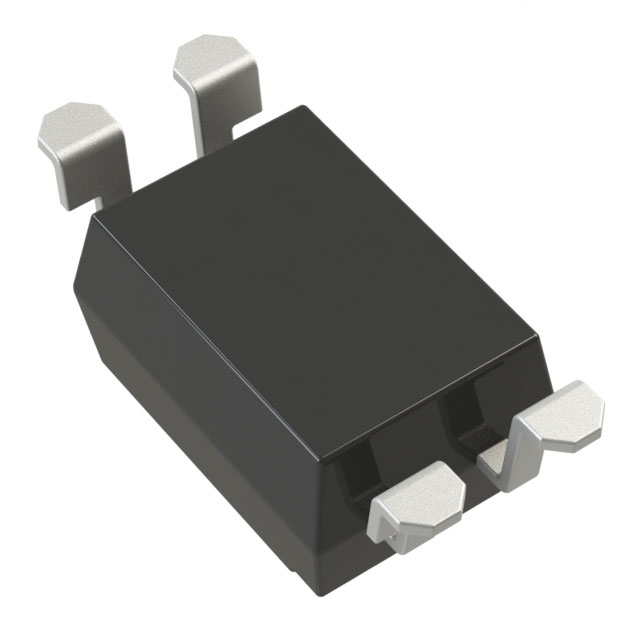

Package / Case	4-SMD, Gull Wing
Rise / Fall Time (Typ) [custom]	3 µs
Rise / Fall Time (Typ) [custom]	4 µs
Supplier Device Package	4-SMD
Vce Saturation (Max)	200 mV

Part	Mounting Type	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current Transfer Ratio (Min) [Min]	Current - Output / Channel	Input Type	Current Transfer Ratio (Max)	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Vce Saturation (Max)	Current - DC Forward (If) (Max) [Max]	Output Type	Number of Channels
SHARP/Socle Technology PC81713NIP1B	Surface Mount	3 µs	4 µs	100 %	50 mA	DC	600 %	4-SMD	100 °C	-30 ░C	4-SMD Gull Wing	200 mV	10 mA	1.81 mOhm	1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Optoisolator Transistor Output 5000Vrms 1 Channel 4-SMD
