IS32LT3140A-ZLA3-TR
ActiveLumissil Microsystems
IC LED DRV LIN PWM 14ETSSOP
Deep-Dive with AI
Search across all available documentation for this part.
IS32LT3140A-ZLA3-TR
ActiveLumissil Microsystems
IC LED DRV LIN PWM 14ETSSOP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IS32LT3140A-ZLA3-TR |
|---|---|
| Dimming | PWM |
| Grade | Automotive |
| Internal Switch(s) | False |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -40 °C |

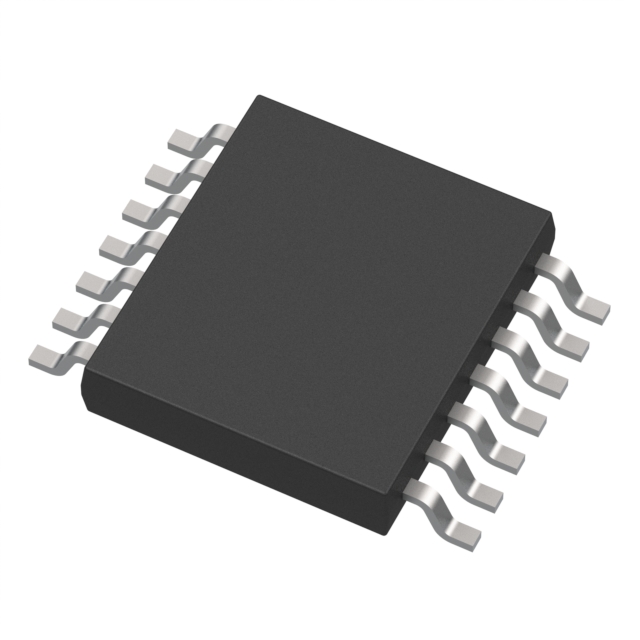

| Package / Case | 14-TSSOP (0.173", 4.40mm Width) Exposed Pad |
| Qualification | AEC-Q100 |
| Supplier Device Package | 14-eTSSOP |
| Topology | Constant Current |
| Type | Linear |
| Voltage - Supply (Max) [Max] | 40 V |
| Voltage - Supply (Min) [Min] | 4.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.91 | |
| 10 | $ 0.82 | |||
| 25 | $ 0.78 | |||
| 100 | $ 0.64 | |||
| 250 | $ 0.60 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.49 | |||
| Digi-Reel® | 1 | $ 0.91 | ||
| 10 | $ 0.82 | |||
| 25 | $ 0.78 | |||
| 100 | $ 0.64 | |||
| 250 | $ 0.60 | |||
| 500 | $ 0.53 | |||
| 1000 | $ 0.49 | |||
| Tape & Reel (TR) | 2500 | $ 0.49 | ||
Description
General part information
IS32LT3140 Series
LED Driver IC 1 Output Linear Constant Current PWM Dimming 450mA 14-eTSSOP
Documents
Technical documentation and resources
No documents available
