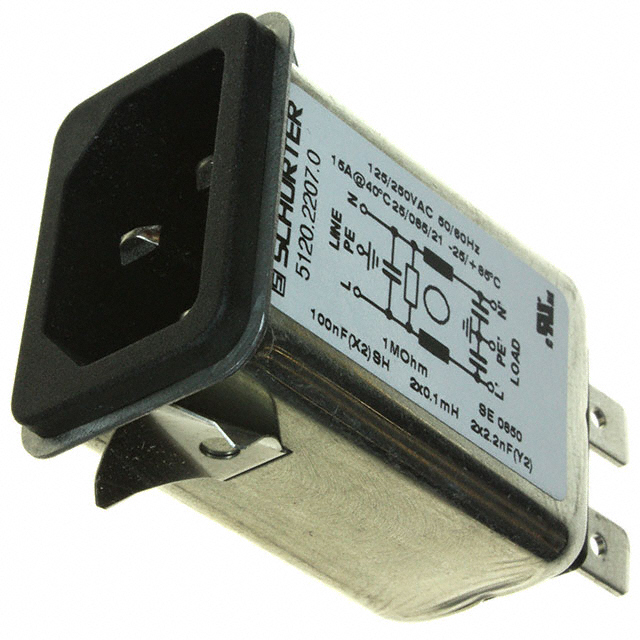

5120.2207.0

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Search across all available documentation for this part.

Active

SCHURTER Inc.

PWR ENT RCPT IEC320-C14 PANEL QC

Technical Specifications

Parameters and characteristics for this part

Specification	5120.2207.0

Accomodates a Fuse	False
Approval Agency	CCC, ENEC, cULus
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Filter	15 A
Features	Bleed Resistor, Shielded
Filter Type	Filtered (EMI, RFI) - Commercial
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Snap-In
Panel Cutout Dimensions [x]	29.4 mm
Panel Cutout Dimensions [y]	21.5 mm
Panel Thickness [Max]	0.079 "
Panel Thickness [Max]	2 mm
Panel Thickness [Min]	0.031 "
Panel Thickness [Min]	0.79 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect

Part	Accomodates a Fuse	Mounting Type	Connector Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating - Filter	Connector Type	Filter Type	Approval Agency	Material Flammability Rating	Features	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Min]	Termination	Termination	Termination	Ingress Protection
SCHURTER Inc. 5120.2207.0		Panel Mount Snap-In	IEC 320-C14	21.5 mm	29.4 mm	15 A	Male Blades Receptacle	Filtered (EMI RFI) - Commercial	CCC cULus ENEC	UL94 V-0	Bleed Resistor Shielded	0.079 "	0.031 "	2 mm	0.79 mm	0.25 in	6.3 mm	Quick Connect	IP40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.81

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Snap-In
