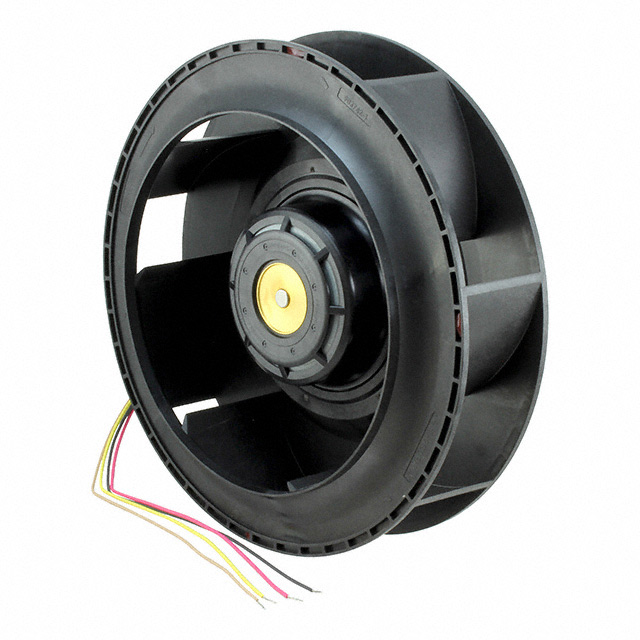

9TS48P0G001
ActiveSanyo Denki America Inc.
FAN IMP MTRZD 225X99MM 48VDC
Deep-Dive with AI
Search across all available documentation for this part.
9TS48P0G001
ActiveSanyo Denki America Inc.
FAN IMP MTRZD 225X99MM 48VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 9TS48P0G001 |
|---|---|
| Air Flow | 27.77 mł/min |
| Air Flow | 991.8 CFM |
| Approval Agency | CSA, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 3.65 A |
| Fan Type | Motorized Impellers |
| Features | Speed Sensor (Tach), PWM Control |
| Lifetime @ Temp. | Varies Based on Temperature |
| Material - Blade | Plastic |
| Material - Frame | Aluminum |
| Noise | 74.5 dB(A) |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 175.2 W |
| RPM | 3550 RPM |
| Size / Dimension [diameter] | 225 mm |
| Static Pressure | 3.457 in H2O |
| Static Pressure | 861.1 Pa |
| Termination | 4 Wire Leads |
| Voltage - Rated [custom] | 48 VDC |
| Voltage Range [Max] | 72 VDC |
| Voltage Range [Min] | 37 VDC |
| Weight | 2.6 lbs |
| Weight | 1.2 kg |
| Width [y] | 99 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 419.25 | |
| 12 | $ 386.77 | |||
Description
General part information
9TS48 Series
Fan Motorized Impellers 48VDC Round - 225mm Dia Ball 991.8 CFM (27.77mł/min) 4 Wire Leads
