2710314

Active

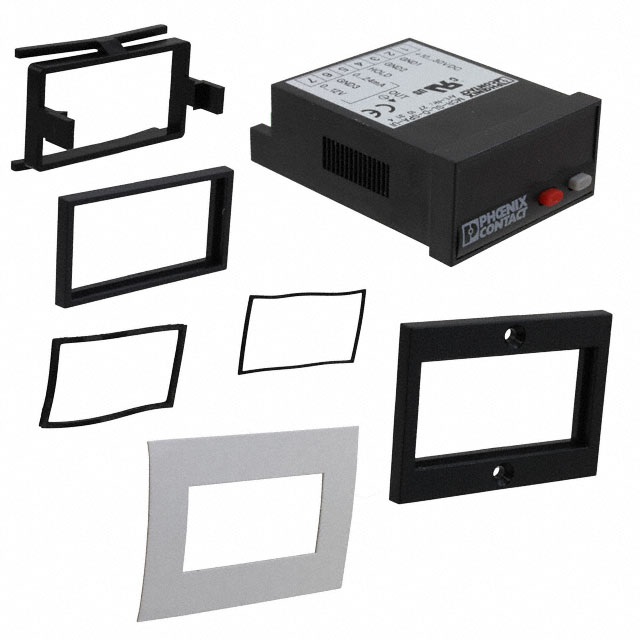

Phoenix Contact

PROCESS METER LED PANEL MOUNT

Search across all available documentation for this part.

Active

Phoenix Contact

PROCESS METER LED PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	2710314

Display Characters - Height [y]	0.315 in
Display Characters - Height [y]	8 mm
Display Type	LED - Red Characters
Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Range [Max]	12 VDC, 24 mA
Measuring Range [Min]	0 A, 0 V
Measuring Type	Process
Number of Characters Per Row	4
Output Type	Analog
Panel Cutout Dimensions [x]	45 mm
Panel Cutout Dimensions [y]	22 mm
Termination Style	Screw Terminal
Type	Process Meter
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC
Weight	0.11 lb
Weight	49.9 g

Part	Number of Characters Per Row	Display Type	Ingress Protection	Measuring Type	Weight	Weight	Measuring Range [Min]	Measuring Range [Max]	Display Characters - Height [y]	Display Characters - Height [y]	Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Output Type	Termination Style	Voltage - Supply [Max]	Voltage - Supply [Min]
Phoenix Contact 2710314	4	LED - Red Characters	IP65 - Dust Tight Water Resistant	Process	0.11 lb	49.9 g	0 A 0 V	12 VDC 24 mA	0.315 in	8 mm	Process Meter	45 mm	22 mm	Analog	Screw Terminal	30 VDC	10 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Process Meter LED - Red Characters Display Panel Mount

Technical documentation and resources
