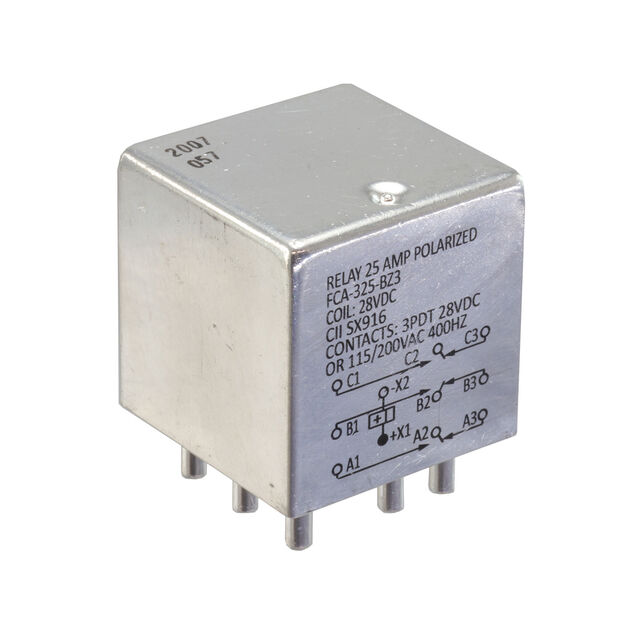

FCA-325-BZ3

Active

TE Connectivity Aerospace, Defense and Marine

RELAY GEN PURPOSE 3PDT 25A 28V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FCA-325-BZ3

Active

TE Connectivity Aerospace, Defense and Marine

RELAY GEN PURPOSE 3PDT 25A 28V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FCA-325-BZ3

Coil Current	96.6 mA
Coil Resistance	290 Ohms
Coil Type	Non Latching
Coil Voltage	28 VDC
Contact Form	3PDT (3 Form C)
Contact Rating (Current)	25 A
Load - Max Switching	700 W, 2875 VA
Mounting Type	Through Hole
Must Operate Voltage	13.5 VDC
Must Release Voltage	2.3 VDC
Operate Time	15 ms
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-70 °C
Relay Type	General Purpose
Release Time	15 ms
Seal Rating	Sealed - Hermetically
Switching Voltage	28 VDC, 115 VAC
Termination Style	PC Pin

1617753 Series

Part	Coil Current	Seal Rating	Termination Style	Contact Rating (Current)	Coil Voltage	Coil Resistance	Contact Form	Coil Type	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Must Release Voltage	Load - Max Switching	Must Operate Voltage	Operate Time	Relay Type	Release Time	Switching Voltage	Features	Contact Material	Grade	Qualification
TE Connectivity Aerospace, Defense and Marine FCA-325-CV3	96.6 mA	Sealed - Hermetically	Solder Hook	25 A	28 VDC	290 Ohms	3PDT (3 Form C)	Non Latching	125 °C	-70 °C	Chassis Mount	1.5 VDC	700 W 2875 VA	18 VDC	15 ms	General Purpose	15 ms	28 VDC 115 VAC
TE Connectivity Aerospace, Defense and Marine FCA-325-AV9	30 mA	Sealed - Hermetically	PC Pin	25 A	115 VAC	3.833 kOhms	3PDT (3 Form C)	Non Latching	125 °C	-70 °C	Chassis Mount	5 VAC	700 W 2875 VA	95 VAC	15 ms	General Purpose	15 ms	28 VDC 115 VAC
TE Connectivity Aerospace, Defense and Marine FCA-325-CY3	96.6 mA	Sealed - Hermetically	Solder Hook	25 A	28 VDC	290 Ohms	3PDT (3 Form C)	Non Latching	125 °C	-70 °C	Chassis Mount	1.5 VDC	700 W 2875 VA	18 VDC	15 ms	General Purpose	15 ms	28 VDC 115 VAC
TE Connectivity Aerospace, Defense and Marine FCA-325-BY2	171.4 mA	Sealed - Hermetically	PC Pin	25 A	12 VDC	70 Ohms	3PDT (3 Form C)	Non Latching	125 °C	-70 °C	Chassis Mount	0.75 VDC	700 W 2875 VA	9 VDC	10 ms	General Purpose	10 ms	28 VDC 115 VAC	Diode
TE Connectivity Aerospace, Defense and Marine FCA-410-1513M		Sealed - Hermetically	Solder Hook	10 A			4PDT (4 Form C)	Non Latching	125 °C	-70 °C	Chassis Mount		280 W 1150 VA			General Purpose		28 VDC 115 VAC		Silver Cadmium Oxide (AgCdO)
TE Connectivity Aerospace, Defense and Marine FCA-325-CX3	96.6 mA	Sealed - Hermetically	Solder Hook	25 A	28 VDC	290 Ohms	3PDT (3 Form C)	Non Latching	125 °C	-70 °C	Chassis Mount	1.5 VDC	700 W 2875 VA	18 VDC	15 ms	General Purpose	15 ms	28 VDC 115 VAC
TE Connectivity Aerospace, Defense and Marine FCA-325-BZ3	96.6 mA	Sealed - Hermetically	PC Pin	25 A	28 VDC	290 Ohms	3PDT (3 Form C)	Non Latching	125 °C	-70 °C	Through Hole	2.3 VDC	700 W 2875 VA	13.5 VDC	15 ms	General Purpose	15 ms	28 VDC 115 VAC
TE Connectivity Aerospace, Defense and Marine FCA-325-AY2	171.4 mA	Sealed - Hermetically	PC Pin	25 A	12 VDC	70 Ohms	3PDT (3 Form C)	Non Latching	125 °C	-70 °C	Chassis Mount	0.75 VDC	700 W 2875 VA	9 VDC	15 ms	General Purpose	15 ms	28 VDC 115 VAC
TE Connectivity Aerospace, Defense and Marine FCA-325-3305L	96.6 mA	Sealed - Hermetically	Solder Hook	25 A	28 VDC	290 Ohms	3PDT (3 Form C)	Non Latching	125 °C	-70 °C	Chassis Mount	1.5 VDC	700 W 2875 VA	18 VDC	15 ms	General Purpose	15 ms	28 VDC 115 VAC			Military	MIL-R-83536/33
TE Connectivity Aerospace, Defense and Marine FCA-325-CX4	71.8 mA	Sealed - Hermetically	Solder Hook	25 A	28 VDC	390 Ohms	3PDT (3 Form C)	Non Latching	125 °C	-70 °C	Chassis Mount	2.3 VDC	700 W 2875 VA	13.5 VDC	15 ms	General Purpose	15 ms	28 VDC 115 VAC	Diode

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 316.35
		10	$ 295.26
		25	$ 284.71

Description

General part information

1617753 Series

General Purpose Relay 3PDT (3 Form C) 28VDC Coil Through Hole
