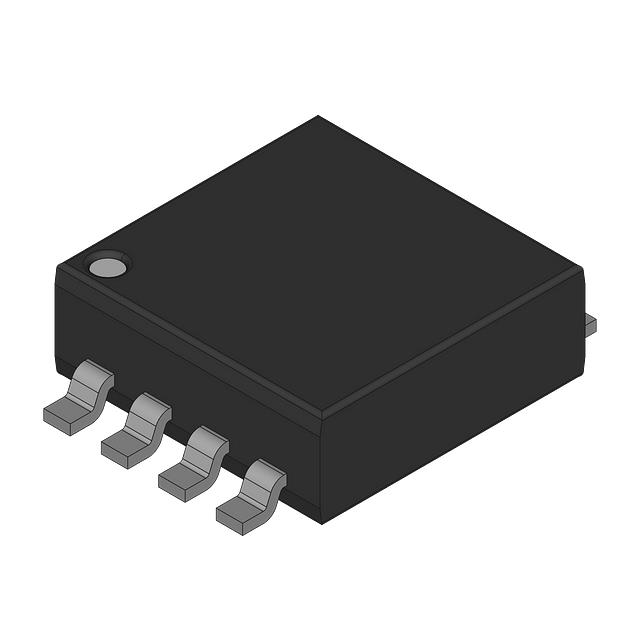

74AHC3G04DP/C125

Active

Freescale Semiconductor - NXP

IC INVERTER

Search across all available documentation for this part.

Active

Freescale Semiconductor - NXP

IC INVERTER

Technical Specifications

Parameters and characteristics for this part

Specification	74AHC3G04DP/C125

Current - Output High, Low [custom]	8 mA
Current - Output High, Low [custom]	8 mA
Current - Quiescent (Max) [Max]	1 çA
Input Logic Level - High [Max]	3.85 V
Input Logic Level - High [Min]	1.5 V
Input Logic Level - Low [Max]	1.65 V
Input Logic Level - Low [Min]	0.5 V
Logic Type	Inverter
Max Propagation Delay @ V, Max CL	7.5 ns
Mounting Type	Surface Mount
Number of Circuits	3
Number of Inputs	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-MSOP, 8-TSSOP
Package / Case	3 mm
Package / Case [custom]	0.118 in
Supplier Device Package	8-TSSOP
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2 V

Part	Current - Quiescent (Max) [Max]	Number of Inputs	Mounting Type	Logic Type	Number of Circuits	Supplier Device Package	Current - Output High, Low [custom]	Current - Output High, Low [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Input Logic Level - Low [Min]	Input Logic Level - Low [Max]	Max Propagation Delay @ V, Max CL	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case [custom]	Package / Case	Input Logic Level - High [Max]	Input Logic Level - High [Min]
Freescale Semiconductor - NXP 74AHC3G04DP/C125	1 çA	3	Surface Mount	Inverter	3	8-TSSOP	8 mA	8 mA	5.5 V	2 V	0.5 V	1.65 V	7.5 ns	125 °C	-40 °C	8-MSOP 8-TSSOP	0.118 in	3 mm	3.85 V	1.5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Inverter IC 3 Channel 8-TSSOP
