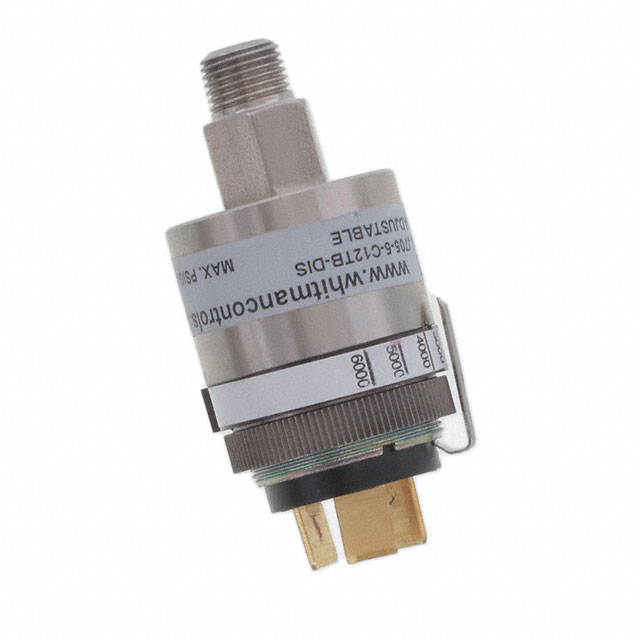

J705-5-C12TB-DIS
ActiveWhitman Controls, LLC
PRESSURE SWITCH 600-5000 PSIG
Deep-Dive with AI
Search across all available documentation for this part.
J705-5-C12TB-DIS
ActiveWhitman Controls, LLC
PRESSURE SWITCH 600-5000 PSIG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | J705-5-C12TB-DIS |
|---|---|
| Accuracy | 300 PSI |
| Accuracy | 2068.43 kPa |
| Operating Pressure [Max] | 41368.54 kPa |
| Operating Pressure [Max] | 6000 PSI |
| Operating Pressure [Min] | 4826.33 kPa |
| Operating Pressure [Min] | 700 PSI |
| Operating Temperature [Max] | 107 °C |
| Operating Temperature [Min] | -54 °C |
| Output Type | SPDT |
| Package / Case | Cylinder, Threaded |
| Port Size | 0.125 " |
| Port Size | 3.18 mm |
| Port Size | Male |
| Port Style | Threaded |
| Pressure Type | Switch |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 186.41 | |
Description
General part information
J705-5 Series
PRESSURE SWITCH 600-5000 PSIG
Documents
Technical documentation and resources
No documents available
