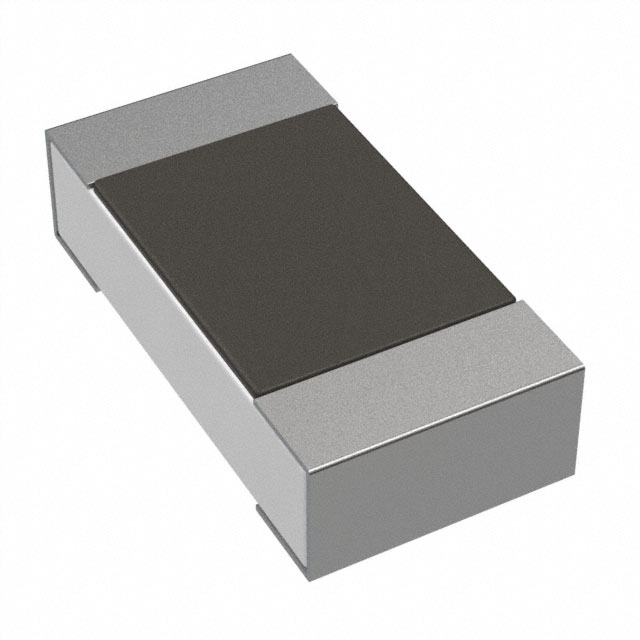

RK73Z1JLTD
ActiveKOA Speer Electronics, Inc.
RES 0 OHM JUMPER 0603
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RK73Z1JLTD
ActiveKOA Speer Electronics, Inc.
RES 0 OHM JUMPER 0603
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RK73Z1JLTD |
|---|---|
| Composition | Metal Element |
| Features | Automotive AEC-Q200, Moisture Resistant |
| Height - Seated (Max) [Max] [z] | 0.022 in |
| Height - Seated (Max) [Max] [z] | 0.55 mm |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0603 (1608 Metric) |
| Resistance | 0 Ohms |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Size / Dimension [y] | 0.031 in |
| Tolerance | Jumper |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.13 | |
| 10 | $ 0.11 | |||
| 25 | $ 0.08 | |||
| 50 | $ 0.06 | |||
| 100 | $ 0.04 | |||
| 250 | $ 0.03 | |||
| 500 | $ 0.03 | |||
| 1000 | $ 0.02 | |||
| Digi-Reel® | 1 | $ 0.13 | ||
| 10 | $ 0.11 | |||
| 25 | $ 0.08 | |||
| 50 | $ 0.06 | |||
| 100 | $ 0.04 | |||
| 250 | $ 0.03 | |||
| 500 | $ 0.03 | |||
| 1000 | $ 0.02 | |||
| Tape & Reel (TR) | 5000 | $ 0.02 | ||
| 10000 | $ 0.01 | |||
| 25000 | $ 0.01 | |||
| 50000 | $ 0.01 | |||
| 125000 | $ 0.01 | |||
Description
General part information
RK73Z1J Series
0 Ohms Jumper Chip Resistor 0603 (1608 Metric) Automotive AEC-Q200, Moisture Resistant Metal Element
