2359392-1

Active

TE Connectivity Potter & Brumfield Relays

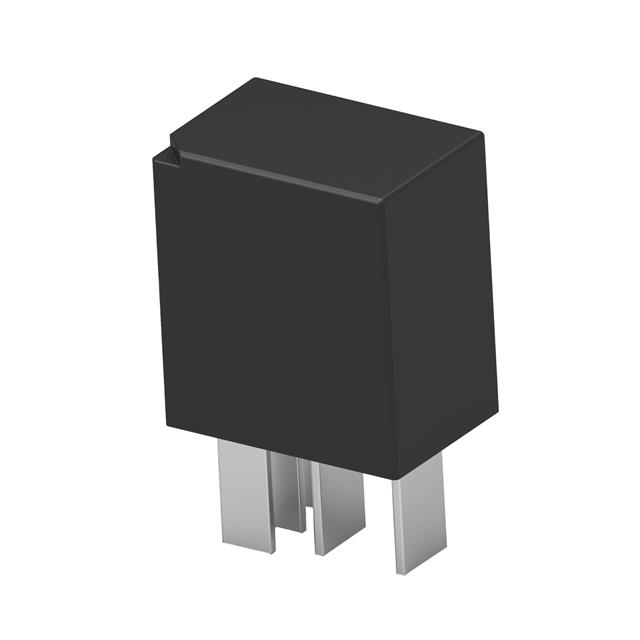

RELAY V23074A1002A402-EV-CBOX

Search across all available documentation for this part.

Active

TE Connectivity Potter & Brumfield Relays

RELAY V23074A1002A402-EV-CBOX

Technical Specifications

Parameters and characteristics for this part

Specification	2359392-1

Coil Power	1.34 W
Coil Resistance	430 Ohms
Coil Type	Non Latching
Coil Voltage	24 VDC
Contact Form	SPST-NO (1 Form A)
Contact Material	Silver Alloy
Contact Rating (Current)	30 A
Features	Resistor
Mounting Type	Socketable
Must Operate Voltage	14.4 VDC
Must Release Voltage	3.6 VDC
Operate Time	6 ms
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Release Time	3 ms
Switching Voltage	32 VDC
Termination Style	Plug In, Multiple Sizes, Quick Connect

Part	Contact Form	Coil Resistance	Release Time	Coil Power	Must Operate Voltage	Coil Voltage	Termination Style	Switching Voltage	Must Release Voltage	Coil Type	Operate Time	Operating Temperature [Max]	Operating Temperature [Min]	Contact Material	Mounting Type	Contact Rating (Current)	Features
TE Connectivity Potter & Brumfield Relays 2359392-1	SPST-NO (1 Form A)	430 Ohms	3 ms	1.34 W	14.4 VDC	24 VDC	Multiple Sizes Plug In Quick Connect	32 VDC	3.6 VDC	Non Latching	6 ms	125 °C	-40 °C	Silver Alloy	Socketable	30 A	Resistor
