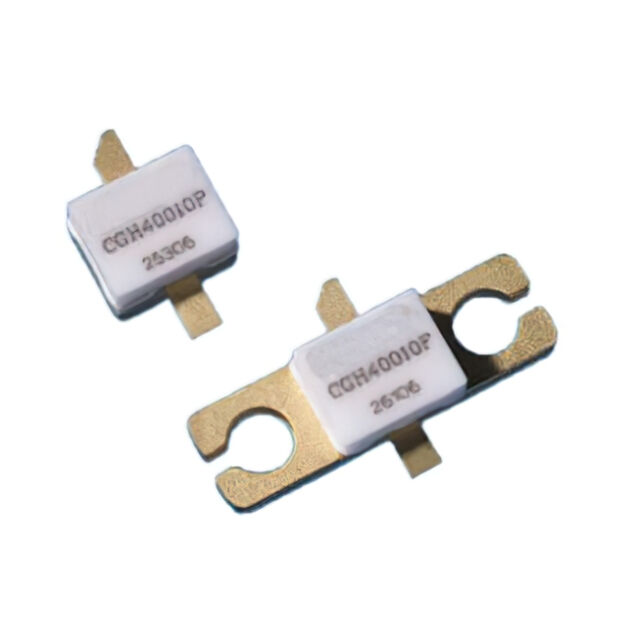

CGH40010F

MACOM Technology Solutions

RF MOSFET HEMT 28V 440166

Search across all available documentation for this part.

MACOM Technology Solutions

RF MOSFET HEMT 28V 440166

Technical Specifications

Parameters and characteristics for this part

Part	Supplier Device Package	Technology	Current - Test	Power - Output	Frequency [Max]	Voltage - Rated	Voltage - Test	Gain	Package / Case	Current Rating (Amps)
MACOM Technology Solutions CGH40006S	6-QFN-EP (3x3)	HEMT	100 mA	8 W	6 GHz	84 V	28 V	12 dBi	6-VDFN Exposed Pad
MACOM Technology Solutions CGH40035F	440193	HEMT		45 W	4 GHz	84 V	28 V	14 dBi	440193	10.5 A
MACOM Technology Solutions CGH40120F	440193	HEMT	1 A	120 W	4 GHz	84 V	28 V	19 dB	440193	28 A
MACOM Technology Solutions CGH40180PP	440199	HEMT	2 A	220 W	2.5 GHz	84 V	28 V	19 dB	440199	56 A
MACOM Technology Solutions CGH40010F	440166	HEMT	200 mA	12.5 W	6 GHz	84 V	28 V	14.5 dBi	440166	3.5 A
MACOM Technology Solutions CGH40045F	440193	HEMT	400 mA	55 W	4 GHz	84 V	28 V	14 dBi	440193	14 A
MACOM Technology Solutions CGH40090PP	440199	HEMT	1 A	100 W	4 GHz	84 V	28 V	12.5 dBi	440199	28 A
MACOM Technology Solutions CGH40006P	440109	HEMT	100 mA	8 W	6 GHz	84 V	28 V	13 dBi	440109	3.5 A
MACOM Technology Solutions CGH40025F	440166	HEMT	250 mA	30 W	6 GHz	84 V	28 V	13 dBi	440166	7 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF Mosfet 28 V 200 mA 0Hz ~ 6GHz 14.5dB 12.5W 440166

Technical documentation and resources
