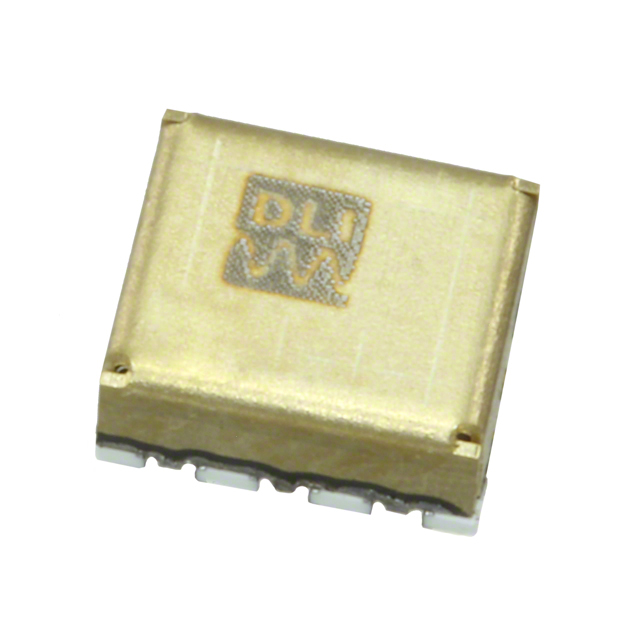

L050XF9S
ActiveKnowles Johanson Manufacturing
RF FILTER LOW PASS 2GHZ 10SMD
Deep-Dive with AI
Search across all available documentation for this part.
L050XF9S
ActiveKnowles Johanson Manufacturing
RF FILTER LOW PASS 2GHZ 10SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | L050XF9S |
|---|---|
| Filter Type [custom] | Low Pass |
| Frequency | 2 GHz |
| Height (Max) [Max] | 2.62 mm |
| Height (Max) [Max] | 0.103 in |
| Insertion Loss | 1 dB |
| Mounting Type | Surface Mount |
| Package / Case | 10-SMD, No Lead |
| Size / Dimension [x] | 5.59 mm |
| Size / Dimension [x] | 0.22 in |
| Size / Dimension [y] | 4.57 mm |
| Size / Dimension [y] | 0.18 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 161.78 | |
| 10 | $ 131.90 | |||
| 25 | $ 126.00 | |||
Description
General part information
L050XF Series
2GHz Center Frequency Low Pass RF Filter (Radio Frequency) Bandwidth 1dB 10-SMD, No Lead
Documents
Technical documentation and resources
No documents available
