315-030-520-278
ActiveEDAC Inc.

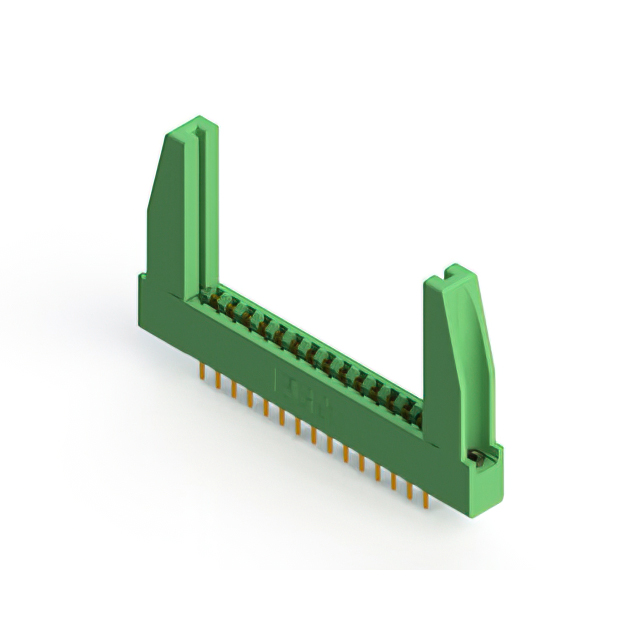

CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 30 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
315-030-520-278
ActiveEDAC Inc.
CARD EDGE CONNECTOR, DUAL SIDE, 1.57 MM, 30 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 315-030-520-278 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Semi Bellows |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 30 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
315-030 Series
| Part | Contact Finish Thickness | Contact Finish Thickness | Termination | Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Card Type | Contact Material | Number of Positions/Bay/Row [custom] | Contact Finish | Flange Feature | Number of Positions | Read Out | Material - Insulation | Termination Rows | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Type | Pitch [x] | Pitch [x] | Gender | Mounting Type | Features | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | 10 Áin | 0.25 Ám | Solder Eyelet(s) | Green | -40 °C | 105 ░C | 2 | Non Specified - Dual Edge | Copper Alloy | 15 | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 30 | Dual | Polyester Thermoplastic | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 0.156 in | 3.96 mm | Female | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | Solder | Green | -40 °C | 105 ░C | 2 | Non Specified - Dual Edge | Copper Alloy | 15 | Gold | Flush Mount Top Opening Unthreaded | 30 | Dual | Polyester Thermoplastic | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 0.156 in | 3.96 mm | Female | Board Edge Straddle Mount | Card Extender | 3.25 mm | 0.128 " |
EDAC Inc. | 10 Áin | 0.25 Ám | Solder | Green | -40 °C | 105 ░C | 2 | Non Specified - Dual Edge | Copper Alloy | 15 | Gold | Flush Mount M3 Threaded Insert Top Opening | 30 | Dual | Polyester Thermoplastic | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 0.156 in | 3.96 mm | Female | Board Edge Straddle Mount | Card Extender | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Solder Eyelet(s) | Green | -40 °C | 105 ░C | 2 | Non Specified - Dual Edge | Copper Alloy | 15 | Gold | Flush Mount Top Opening Unthreaded | 30 | Dual | Polyester Thermoplastic | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 0.156 in | 3.96 mm | Female | 3.96 mm | 0.156 in | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Solder Eyelet(s) | Green | -40 °C | 105 ░C | 2 | Non Specified - Dual Edge | Copper Alloy | 15 | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 30 | Dual | Polyester Thermoplastic | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 0.156 in | 3.96 mm | Female | ||||
EDAC Inc. | 10 Áin | 0.25 Ám | Solder | Green | -40 °C | 105 ░C | 2 | Non Specified - Dual Edge | Copper Alloy | 15 | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 30 | Dual | Polyester Thermoplastic | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 0.156 in | 3.96 mm | Female | Board Edge Straddle Mount | Card Extender | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Solder Eyelet(s) | Green | -40 °C | 105 ░C | 2 | Non Specified - Dual Edge | Copper Alloy | 15 | Gold | Floating Bobbin Flush Mount | 30 | Dual | Polyester Thermoplastic | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 0.156 in | 3.96 mm | Female | 2.95 mm | 0.116 in | ||
EDAC Inc. | 10 Áin | 0.25 Ám | Solder | Green | -40 °C | 105 ░C | 2 | Non Specified - Dual Edge | Copper Alloy | 15 | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 30 | Dual | Polyester Thermoplastic | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 0.156 in | 3.96 mm | Female | Panel Mount Through Hole | |||
EDAC Inc. | 10 Áin | 0.25 Ám | Solder | Green | -40 °C | 105 ░C | 2 | Non Specified - Dual Edge | Copper Alloy | 15 | Gold | Flush Mount Top Opening Unthreaded | 30 | Dual | Polyester Thermoplastic | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 0.156 in | 3.96 mm | Female | Panel Mount Through Hole | 3.96 mm | 0.156 in | |
EDAC Inc. | 10 Áin | 0.25 Ám | Solder | Green | -40 °C | 105 ░C | 2 | Non Specified - Dual Edge | Copper Alloy | 15 | Gold | 4-40 Flush Mount Threaded Insert Top Opening | 30 | Dual | Polyester Thermoplastic | 2 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Semi Bellows | 0.156 in | 3.96 mm | Female | Board Edge Straddle Mount |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
315-030 Series
30 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Green
