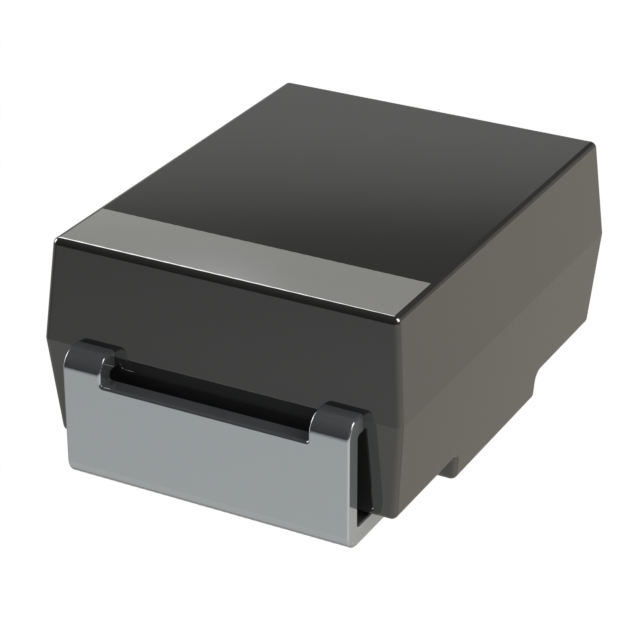

TCJH157M006R0200

Active

Kyocera AVX

TANTALUM POLYMER CAPACITOR, 150 ΜF, ± 20%, 6.3 V, H, 0.2 OHM, 1411 [3528 METRIC]

Search across all available documentation for this part.

Active

Kyocera AVX

TANTALUM POLYMER CAPACITOR, 150 ΜF, ± 20%, 6.3 V, H, 0.2 OHM, 1411 [3528 METRIC]

Technical Specifications

Parameters and characteristics for this part

Specification	TCJH157M006R0200

Capacitance	150 µF
ESR (Equivalent Series Resistance)	200 mOhm
Features	General Purpose
Height - Seated (Max) [Max]	1.5 mm
Height - Seated (Max) [Max] [z]	0.059 "
Lifetime @ Temp.	2000 Hrs
Manufacturer Size Code	H
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Package / Case	1210 (3528 Metric)
Size / Dimension [x]	0.138 "
Size / Dimension [x]	3.5 mm
Size / Dimension [y]	0.11 in
Size / Dimension [y]	2.8 mm
Tolerance	20 %
Type	Molded
Voltage - Rated	6.3 V

Part	Height - Seated (Max) [Max]	Height - Seated (Max) [Max] [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Manufacturer Size Code	ESR (Equivalent Series Resistance)	Package / Case	Mounting Type	Features	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Voltage - Rated	Type	Capacitance	Lifetime @ Temp.
Kyocera AVX TCJH157M006S0200	1.5 mm	0.059 "	0.11 in	2.8 mm	0.138 "	3.5 mm	H	200 mOhm	1210 (3528 Metric)	Surface Mount	General Purpose	105 ░C	-55 °C	20 %	6.3 V	Molded	150 µF	2000 Hrs
Kyocera AVX TCJH157M006R0200	1.5 mm	0.059 "	0.11 in	2.8 mm	0.138 "	3.5 mm	H	200 mOhm	1210 (3528 Metric)	Surface Mount	General Purpose	105 ░C	-55 °C	20 %	6.3 V	Molded	150 µF	2000 Hrs
Kyocera AVX TCJH336M016R0150E	1.5 mm	0.059 "	0.11 in	2.8 mm	0.138 "	3.5 mm	H	150 mOhm	1210 (3528 Metric)	Surface Mount	General Purpose	105 ░C	-55 °C	20 %	16 V	Molded	33 ÁF	2000 Hrs
Kyocera AVX TCJH476M010R0100E	1.5 mm	0.059 "	0.11 in	2.8 mm	0.138 "	3.5 mm	H	100 mOhm	1210 (3528 Metric)	Surface Mount	General Purpose	105 ░C	-55 °C	20 %	10 V	Molded	47 µF	2000 Hrs
Kyocera AVX TCJH686M006R0100E	1.5 mm	0.059 "	0.11 in	2.8 mm	0.138 "	3.5 mm	H	100 mOhm	1210 (3528 Metric)	Surface Mount	General Purpose	105 ░C	-55 °C	20 %	6.3 V	Molded	68 µF	2000 Hrs

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

150 µF Molded Tantalum Polymer Capacitor 6.3 V 1210 (3528 Metric) 200mOhm @ 100kHz
