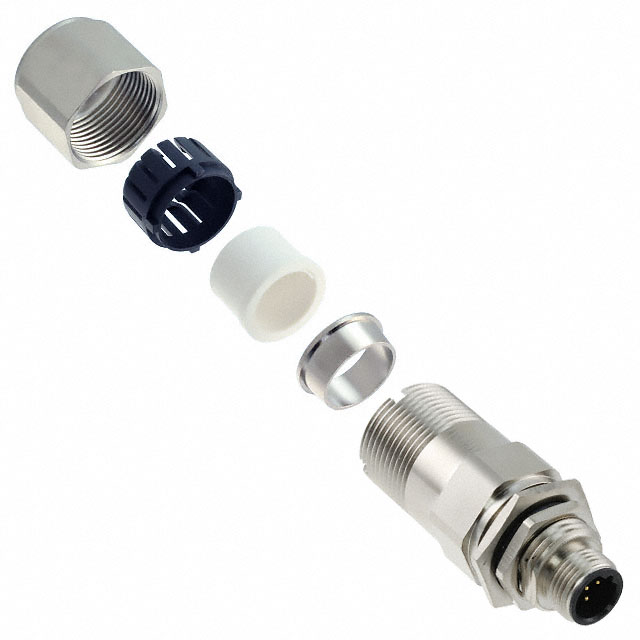

HDM12RM05B1STM

Active

Amphenol Industrial Operations

CONN RCPT MALE 5P GOLD SLDR CUP

Search across all available documentation for this part.

Active

Amphenol Industrial Operations

CONN RCPT MALE 5P GOLD SLDR CUP

Technical Specifications

Parameters and characteristics for this part

Specification	HDM12RM05B1STM

Applications	Industrial, Mass Transit
Backshell Material, Plating	Metal
Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Current Rating (Amps)	4 A
Features	Backshell
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Free Hanging (In-Line), Panel Mount
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	B
Primary Material	Metal
Shell Finish	Nickel
Shell Size - Insert	M12-5
Shielding	Unshielded
Voltage Rating	60 VAC

Part	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Connector Type	Primary Material	Features	Mounting Feature	Shielding	Orientation	Mounting Type	Current Rating (Amps)	Shell Finish	Contact Finish - Mating	Applications	Ingress Protection	Color	Shell Size - Insert
Amphenol Industrial Operations HDM12RM05B1STM	Metal	-55 °C	125 °C	60 VAC	Male Pins Receptacle	Metal	Backshell	Bulkhead - Front Side Nut	Unshielded	B	Free Hanging (In-Line) Panel Mount	4 A	Nickel	Gold	Industrial Mass Transit	IP67 - Dust Tight Waterproof	Silver	M12-5
Amphenol Industrial Operations HDM12RM05B1RA	Plastic	-55 °C	125 °C	60 VAC	Male Pins Receptacle	Metal	Backshell	Bulkhead - Front Side Nut	Unshielded	B	Free Hanging (In-Line) Panel Mount Right Angle	4 A	Nickel	Gold	Industrial Mass Transit	IP67 - Dust Tight Waterproof	Silver	M12-5
Amphenol Industrial Operations HDM12RM05A1RAM	Metal	-55 °C	125 °C	60 VAC	Male Pins Receptacle	Metal	Backshell	Bulkhead - Front Side Nut	Unshielded	A	Free Hanging (In-Line) Panel Mount Right Angle	4 A	Nickel	Gold	Industrial Mass Transit	IP67 - Dust Tight Waterproof	Silver	M12-5
Amphenol Industrial Operations HDM12RM05B1RAM	Metal	-55 °C	125 °C	60 VAC	Male Pins Receptacle	Metal	Backshell	Bulkhead - Front Side Nut	Unshielded	B	Free Hanging (In-Line) Panel Mount Right Angle	4 A	Nickel	Gold	Industrial Mass Transit	IP67 - Dust Tight Waterproof	Silver	M12-5

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5 Position Circular Connector Receptacle, Male Pins Solder Cup
