C3CCG-4036M

Active

CW Industries

IDC CABLE - CKC40G/AE40M/CKC40G

Search across all available documentation for this part.

Active

CW Industries

IDC CABLE - CKC40G/AE40M/CKC40G

Technical Specifications

Parameters and characteristics for this part

Part	Shielding	Contact Finish Thickness	Contact Finish Thickness	Contact Finish	Number of Rows	Cable Termination	Pitch - Cable	Pitch - Cable	Connector Type	Features	Pitch - Connector	Pitch - Connector	Number of Positions	Length [x]	Length [x]	Color	Length	Length	Length
CW Industries C3CCG-4018G	Unshielded	10 Áin	0.25 Ám	Gold	2	IDC	0.05 "	1.27 mm	Socket to Socket	Polarizing Key	0.1 in	2.54 mm	40	457.2 mm	1.5 ft
CW Industries C3CCG-4036M	Unshielded	10 Áin	0.25 Ám	Gold	2	IDC	0.05 "	1.27 mm	Socket to Socket	Polarizing Key	0.1 in	2.54 mm	40	914.4 mm	3 ft	Multiple Ribbon
CW Industries C3CCG-4018M	Unshielded	10 Áin	0.25 Ám	Gold	2	IDC	0.05 "	1.27 mm	Socket to Socket	Polarizing Key	0.1 in	2.54 mm	40	457.2 mm	1.5 ft	Multiple Ribbon
CW Industries C3CCG-4006M	Unshielded	10 Áin	0.25 Ám	Gold	2	IDC	0.05 "	1.27 mm	Socket to Socket	Polarizing Key	0.1 in	2.54 mm	40			Multiple Ribbon	152.4 mm	6 "	0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

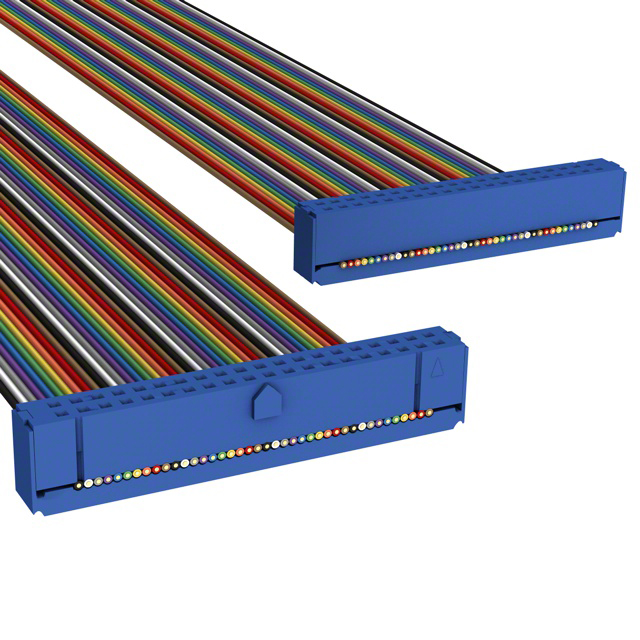

40 Position Cable Assembly Rectangular Socket to Socket 3.00' (914.40mm)
