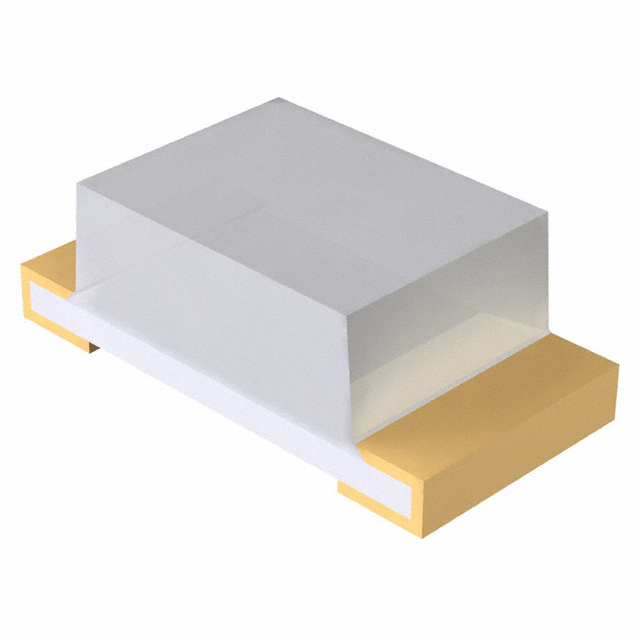

SML-512DWT86
NRNDRohm Semiconductor
LED UNI-COLOR ORANGE 611NM 2-PIN CHIP LED T/R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SML-512DWT86
NRNDRohm Semiconductor
LED UNI-COLOR ORANGE 611NM 2-PIN CHIP LED T/R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SML-512DWT86 |
|---|---|
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] [z] | 0.65 mm |
| Lens Color | White |
| Lens Size [x] | 1.2 mm |
| Lens Size [y] | 0.8 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Transparency | Diffused |
| Millicandela Rating | 100 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0603 (1608 Metric) |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Supplier Device Package | 0603 |
| Supplier Device Package | 1608 |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Dominant | 606 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.51 | |
| 10 | $ 0.34 | |||
| 100 | $ 0.22 | |||
| 1000 | $ 0.17 | |||
| Digi-Reel® | 1 | $ 0.51 | ||
| 10 | $ 0.34 | |||
| 100 | $ 0.22 | |||
| 1000 | $ 0.17 | |||
| Tape & Reel (TR) | 3000 | $ 0.16 | ||
| 6000 | $ 0.15 | |||
| 15000 | $ 0.14 | |||
| 30000 | $ 0.14 | |||
| 75000 | $ 0.13 | |||
Description
General part information
SML-512 Series
ROHM recommendsSML-D12D8Wfor new design."·0603(1608mm) size·Hight-brightness and high-reliability chip LED
