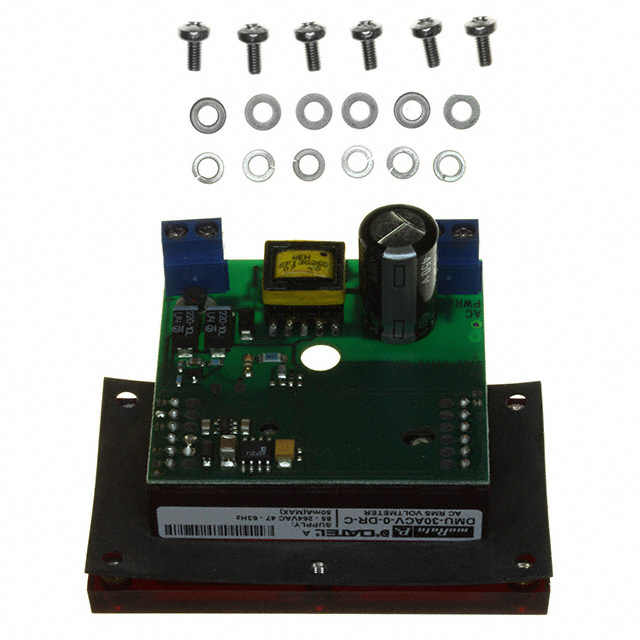

DMU-30ACV-0-DR-C

Obsolete

Murata Power Solutions Inc.

VOLTMETER 0-19.99VAC LED PNL MT

Search across all available documentation for this part.

Obsolete

Murata Power Solutions Inc.

VOLTMETER 0-19.99VAC LED PNL MT

Technical Specifications

Parameters and characteristics for this part

Specification	DMU-30ACV-0-DR-C

Display Characters - Height [z]	14.2 mm
Display Characters - Height [z]	0.56 in
Display Type	LED - Red Characters
Ingress Protection	IP65 - Dust Tight, Water Resistant
Measuring Range [Max]	19.99 VAC
Measuring Range [Min]	0 VAC
Measuring Type	Voltage
Number of Characters Per Row	3.5
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-25 °C
Panel Cutout Dimensions [x]	53.8 mm
Panel Cutout Dimensions [y]	22.3 mm
Termination Style	Screw Terminal
Type	Voltmeter
Voltage - Supply [Max]	264 VAC
Voltage - Supply [Min]	85 VAC
Weight	0.079 lb
Weight	35.83 g

Part	Number of Characters Per Row	Type	Measuring Type	Weight	Weight	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Characters - Height [z]	Display Characters - Height [z]	Measuring Range [Min]	Measuring Range [Max]	Display Type	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Ingress Protection
Murata Power Solutions Inc. DMU-30ACV-1-DR-C	3.5	Voltmeter	Voltage	0.079 lb	35.83 g	85 VAC	264 VAC	14.2 mm	0.56 in	0 VAC	199.9 VAC	LED - Red Characters	Screw Terminal	-25 °C	60 °C	22.3 mm	53.8 mm	IP65 - Dust Tight Water Resistant
Murata Power Solutions Inc. DMU-30ACV-0-DR-C	3.5	Voltmeter	Voltage	0.079 lb	35.83 g	85 VAC	264 VAC	14.2 mm	0.56 in	0 VAC	19.99 VAC	LED - Red Characters	Screw Terminal	-25 °C	60 °C	22.3 mm	53.8 mm	IP65 - Dust Tight Water Resistant

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Voltmeter LED - Red Characters Display Panel Mount
