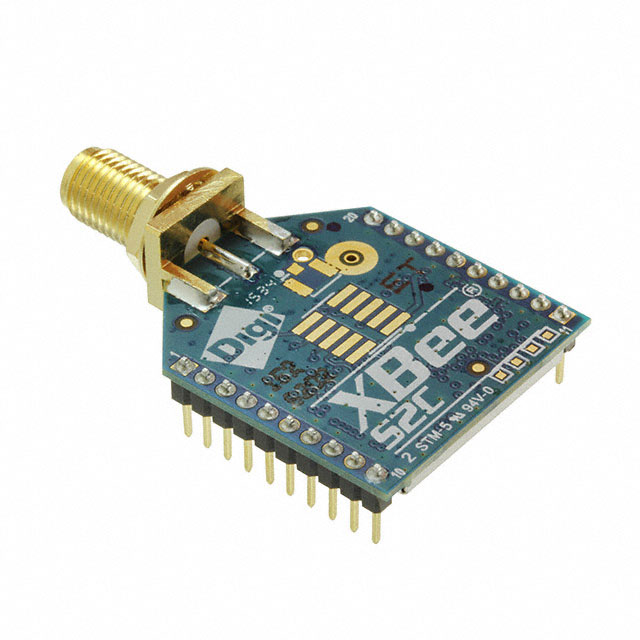

XB24CASIT-001

Digi

RF TXRX MOD 802.15.4RPSMA TH

Search across all available documentation for this part.

Digi

RF TXRX MOD 802.15.4RPSMA TH

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Max]	Operating Temperature [Min]	Serial Interfaces	RF Family/Standard	Sensitivity	Power - Output	Package / Case	Antenna Type	Mounting Type	Data Rate	Utilized IC / Part	Current - Transmitting	Frequency	Current - Receiving	Voltage - Supply [Min]	Voltage - Supply [Max]
Digi XB24CAPIS-001	85 °C	-40 °C	SPI UART	802.15.4	-102 dBm	8 dBm	Module	Integrated Trace	Surface Mount	250 KBd	EM357	45 mA	2.4 GHz	31 mA	2.1 V	3.6 V
Digi XB24CARIS-001	85 °C	-40 °C	SPI UART	802.15.4	-102 dBm	8 dBm	20-SMD Module	Antenna Not Included	Surface Mount	250 KBd	EM357	120 mA	2.4 GHz	31 mA	2.7 V	3.6 V
Digi XB24CASIT-001	85 °C	-40 °C	SPI UART	802.15.4	-102 dBm	8 dBm	Module	Antenna Not Included RP-SMA	Through Hole	1 Mbps	EM357	45 mA	2.4 GHz	31 mA	2.1 V	3.6 V
Digi XB24CAUIS-001	85 °C	-40 °C	SPI UART	802.15.4	-102 dBm	8 dBm	20-SMD Module	Antenna Not Included U.FL	Surface Mount	250 KBd	EM357	45 mA	2.4 GHz	31 mA	2.1 V	3.6 V
