614N/2HH-169

Active

ebm-papst Inc.

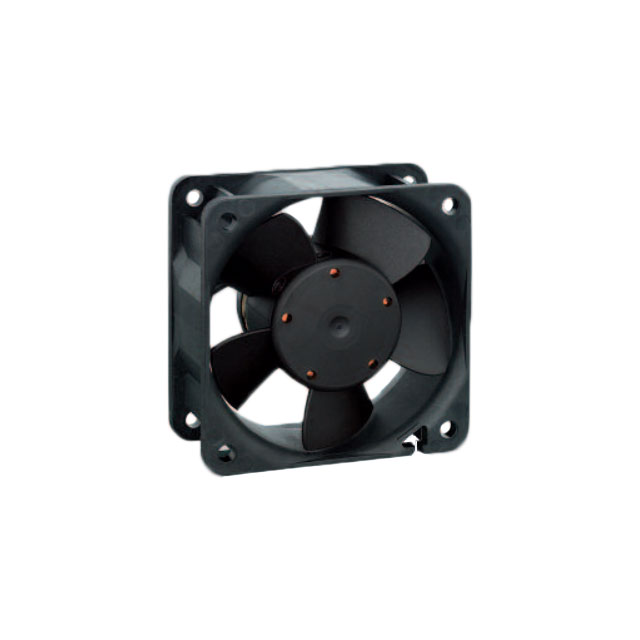

FAN AXIAL 60X25.4MM 24VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

614N/2HH-169

Active

ebm-papst Inc.

FAN AXIAL 60X25.4MM 24VDC WIRE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	614N/2HH-169

Air Flow	31.8 CFM
Air Flow	0.89 m³/min
Approval Agency	UL, VDE, EAC, CE, CSA
Bearing Type	Ball
Current Rating (Amps)	125 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection, Auto Restart
Lifetime @ Temp.	60000 Hrs
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	41 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	3 W
RPM	6850 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	134 Pa
Static Pressure	0.538 in H2O
Termination	3 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	26 VDC
Voltage Range [Min]	18 VDC
Weight	66.22 g
Weight	0.146 lb
Width [y]	25.4 mm

614N Series

Part	Material - Frame	Size / Dimension [x]	Size / Dimension [y]	Bearing Type	Voltage - Rated	Voltage Range [Min]	Voltage Range [Max]	Fan Type	Lifetime @ Temp.	Termination	Approval Agency	Noise	Width [y]	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Power (Watts)	Material - Blade	RPM	Air Flow	Air Flow	Static Pressure	Static Pressure	Features	Current Rating (Amps)	Ingress Protection
ebm-papst Inc. 614NL	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	Ball	24 VDC	18 VDC	28 VDC	Tubeaxial	80000 Hrs	2 Wire Leads	CE CSA UL VDE	16 dB	25.4 mm	-20 °C	70 °C	-20 C	70 °C	65.77 g	0.145 lb	0.9 W	Fiberglass Reinforced Nylon Polyamide (PA)	2500 RPM	0.347 m³/min	12.4 CFM
ebm-papst Inc. 614NGH	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	Sintec	24 VDC	18 VDC	26 VDC	Tubeaxial	70000 Hrs	2 Wire Leads	CE CSA EAC UL VDE	41 dB	25.4 mm	-20 °C	70 °C	-20 C	70 °C	66.22 g	0.146 lb		Fiberglass Reinforced Nylon Polyamide (PA)	5600 RPM	0.708 m³/min	25.3 CFM	90.5 Pa	0.363 in H2O	Auto Restart Locked Rotor Protection	0.103 A
ebm-papst Inc. 614N/2HH-169	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	Ball	24 VDC	18 VDC	26 VDC	Tubeaxial	60000 Hrs	3 Wire Leads	CE CSA EAC UL VDE	41 dB	25.4 mm	-20 °C	70 °C	-20 C	70 °C	66.22 g	0.146 lb	3 W	Fiberglass Reinforced Nylon Polyamide (PA)	6850 RPM	0.89 m³/min	31.8 CFM	134 Pa	0.538 in H2O	Auto Restart Locked Rotor Protection Speed Sensor (Tach)	125 mA
ebm-papst Inc. 614NML	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	Ball	24 VDC	18 VDC	28 VDC	Tubeaxial	80000 Hrs	2 Wire Leads	CE CSA UL VDE	19 dB(A)	25.4 mm	-20 °C	70 °C	-20 C	70 °C	65.77 g	0.145 lb		Fiberglass Reinforced Nylon Polyamide (PA)	3000 RPM	0.412 mł/min	14.7 CFM
ebm-papst Inc. 614NHHU-286	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	Ball	24 VDC	18 VDC	26 VDC	Tubeaxial		2 Wire Leads	UL	41 dB	25.4 mm	-20 °C	70 °C	-20 C	70 °C	66.22 g	0.146 lb	2.9 W	Fiberglass Reinforced Nylon Polyamide (PA)	6850 RPM	0.924 mł/min	33 CFM					IP68 - Dust Tight Waterproof
ebm-papst Inc. 614NH	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	60 mm	60 mm	Ball	24 VDC	18 VDC	26 VDC	Tubeaxial	70000 Hrs	2 Wire Leads	CE CSA UL VDE	37 dB	25.4 mm	-20 °C	70 °C	-20 C	70 °C	65.77 g	0.145 lb	2.1 W	Fiberglass Reinforced Nylon Polyamide (PA)	5600 RPM	0.759 m³/min	27.1 CFM

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 37.83
		10	$ 34.55
		25	$ 33.24
		50	$ 31.05
		100	$ 28.65
		250	$ 28.21

Description

General part information

614N Series

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 31.8 CFM (0.890m³/min) 3 Wire Leads
