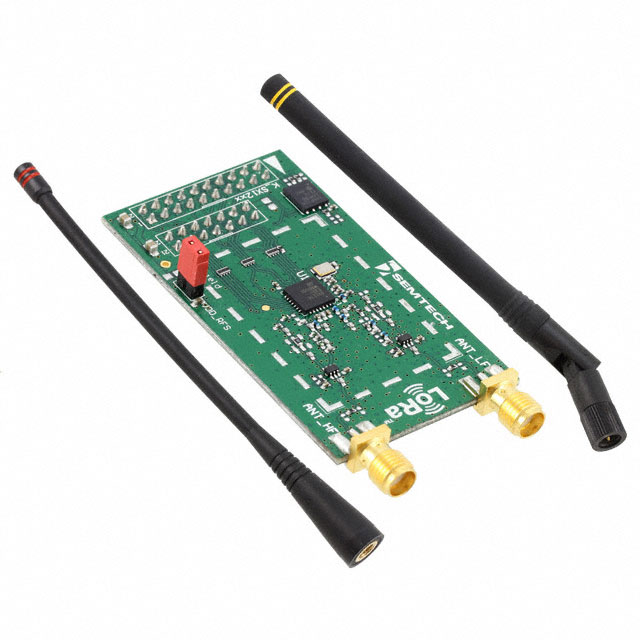

SX1276RF1KAS

Obsolete

Semtech Corporation

RF TXRX MOD ISM<1GHZU.FL TH

Search across all available documentation for this part.

Obsolete

Semtech Corporation

RF TXRX MOD ISM<1GHZU.FL TH

Technical Specifications

Parameters and characteristics for this part

Part	Modulation	Current - Receiving [Min]	Current - Receiving [Max]	Sensitivity	Voltage - Supply [Max]	Voltage - Supply [Min]	Power - Output	RF Family/Standard	Antenna Type	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Frequency [Min]	Frequency [Max]	Mounting Type	Current - Transmitting [Max]	Current - Transmitting [Min]	Serial Interfaces	Data Rate (Max)	Protocol	GPIO	Supplier Device Package	Type	Current - Transmitting	Current - Receiving
Semtech Corporation SX1276RF1JAS	FSK GFSK GMSK MSK OOK	10.8 mA	12 mA	-148 dBm	3.7 V	1.8 V	20 dBm	General ISM < 1GHz	Antenna Not Included U.FL	Module	85 °C	-40 °C	137 MHz	1.02 GHz	Through Hole	120 mA	20 mA	SPI
Semtech Corporation SX1276RF1KAS	FSK GFSK GMSK MSK OOK	10.8 mA	12 mA	-148 dBm	3.7 V	1.8 V	20 dBm	General ISM < 1GHz	Antenna Not Included U.FL	Module	85 °C	-40 °C	137 MHz	1.02 GHz	Through Hole	120 mA	20 mA	SPI
Semtech Corporation SX1276IMLTRT	FSK GFSK GMSK MSK OOK	10.8 mA	12 mA	-148 dBm	3.7 V	1.8 V	20 dBm	802.15.4		28-VQFN Exposed Pad	85 °C	-40 °C	137 MHz	1.02 GHz	Surface Mount	120 mA	20 mA	SPI	300 kbps	LoRa™	6	28-QFN (6x6)	TxRx Only
Semtech Corporation SX1276MB1MAS	FSK GFSK GMSK MSK OOK			-148 dBm	3.7 V	1.8 V	14 dBm	General ISM < 1GHz	Antenna Not Included U.FL	Module	85 °C	-40 °C	137 MHz	1.02 GHz	Through Hole			SPI						120 mA	12 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

General ISM < 1GHz Transceiver Module 137MHz ~ 1.02GHz Antenna Not Included, U.FL Through Hole

Technical documentation and resources

No documents available
