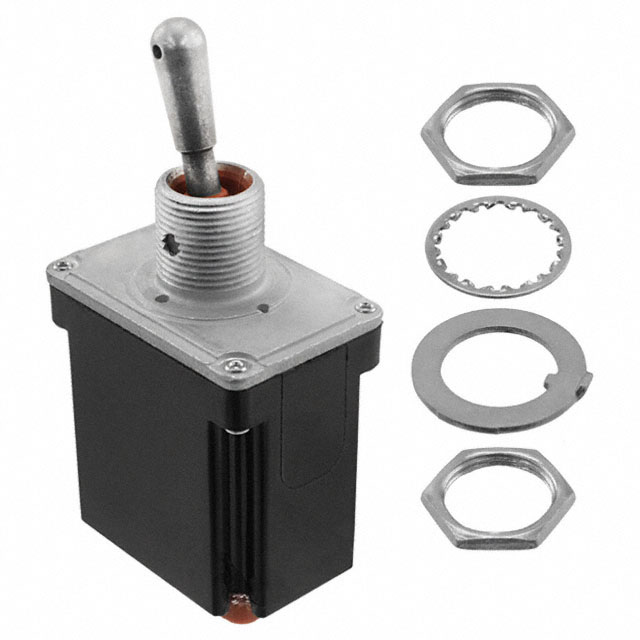

102TL2218-3

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE DPDT 7.5A 115V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsToggle Switch Line Guide Datasheet

102TL2218-3

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH TOGGLE DPDT 7.5A 115V

Deep-Dive with AI

DocumentsToggle Switch Line Guide Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	102TL2218-3

Actuator Length [x]	17.27 mm
Actuator Material	Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	DPDT
Current Rating (Amps)	7.5 A
Illumination	Non-Illuminated
Ingress Protection	Environment Sealed
Operating Temperature [Max]	71 °C
Operating Temperature [Min]	-65 ░C
Panel Cutout Dimensions [diameter]	12.4 mm
Switch Function	On-On
Termination Style	IWTS
Voltage Rating - AC	115 V
Voltage Rating - DC	30 V

102TL2 Series

Part	Circuit	Current Rating (Amps)	Voltage Rating - DC	Ingress Protection	Bushing Thread	Panel Cutout Dimensions [diameter]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Material	Actuator Type	Voltage Rating - AC	Termination Style	Switch Function	Actuator Length [x]	Illumination	Features
Honeywell Sensing and Productivity Solutions 102TL2-7	DPDT	7.5 A	30 V	Environment Sealed	15/32-32	12.4 mm	71 °C	-65 ░C	Nickel Plated	Standard Round	115 V	IWTS	Mom-Off-Mom	17.27 mm	Non-Illuminated
Honeywell Sensing and Productivity Solutions 102TL2164-70	DPDT	7.5 A	28 V	Environment Sealed	15/32-32	12.4 mm	71 °C	-65 ░C	Nickel Plated	Flatted	125 V	IWTS	Mom-On-Mom	16.51 mm	Non-Illuminated
Honeywell Sensing and Productivity Solutions 102TL2-70	DPDT	7.5 A	30 V	Environment Sealed	15/32-32	12.4 mm	71 °C	-65 ░C	Nickel Plated	Standard Round	115 V	IWTS	Mom-On-Mom	17.27 mm	Non-Illuminated
Honeywell Sensing and Productivity Solutions 102TL2841-1	DPDT	100 mA	28 V	Environment Sealed	15/32-32	12.4 mm	71 °C	-65 ░C	Nickel Plated	Flatted	115 V	IWTS	On-Off-On	16.51 mm	Non-Illuminated
Honeywell Sensing and Productivity Solutions 102TL2-10	SP3T	7.5 A	30 V	Environment Sealed	15/32-32	12.4 mm	71 °C	-65 ░C	Nickel Plated	Standard Round	115 V	IWTS	On-On-On	17.27 mm	Non-Illuminated	Jumper needed to achieve triple throw
Honeywell Sensing and Productivity Solutions 102TL2-51	DPDT	7.5 A	30 V	Environment Sealed	15/32-32	12.4 mm	71 °C	-65 ░C	Nickel Plated	Standard Round	115 V	IWTS	On-Mom	17.27 mm	Non-Illuminated
Honeywell Sensing and Productivity Solutions 102TL2218-3	DPDT	7.5 A	30 V	Environment Sealed	15/32-32	12.4 mm	71 °C	-65 ░C	Nickel Plated	Standard Round	115 V	IWTS	On-On	17.27 mm	Non-Illuminated
Honeywell Sensing and Productivity Solutions 102TL2887-7E	DPDT	100 mA	28 V	Environment Sealed	15/32-32	12.4 mm	71 °C	-65 ░C	Nickel Plated	Locking Lever	115 V	IWTS	Mom-Off-Mom	26.67 mm	Non-Illuminated
Honeywell Sensing and Productivity Solutions 102TL2-3D	DPDT	7.5 A	30 V	Environment Sealed	15/32-32	12.4 mm	71 °C	-65 ░C	Nickel Plated	Locking Lever	115 V	IWTS	On-On	26.67 mm	Non-Illuminated
Honeywell Sensing and Productivity Solutions 102TL255-7	DPDT	15 A	28 V	Environment Sealed	15/32-32	12.4 mm	71 °C	-65 ░C		Flatted	125 V	IWTS	Mom-Off-Mom	16.5 mm	Non-Illuminated

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

102TL2 Series

Toggle Switch DPDT Panel Mount

Documents

Technical documentation and resources

Toggle Switch Line Guide

Datasheet
