VLDR1535R-08
ActiveVishay General Semiconductor - Diodes Division

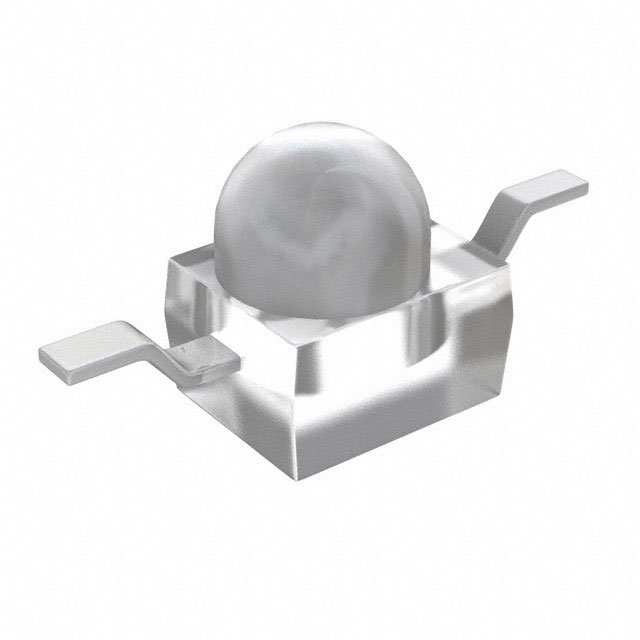

LED RED CLEAR 2SMD BOTTOM ENT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VLDR1535R-08
ActiveVishay General Semiconductor - Diodes Division
LED RED CLEAR 2SMD BOTTOM ENT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VLDR1535R-08 |
|---|---|
| Color | Red |
| Configuration | Independent |
| Current - Test | 50 mA |
| Height (Max) [Max] | 2.75 mm |
| Lens Color | Colorless |
| Lens Size [diameter] | 1.8 mm |
| Lens Style | Round with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating | 6500 mcd |
| Mounting Type | Surface Mount, Bottom Entry |
| Package / Case | 2-SMD, Z-Bend |
| Size / Dimension [x] | 2.3 mm |
| Size / Dimension [y] | 2.3 mm |
| Supplier Device Package | 2-SMD |
| Viewing Angle | 44 ° |
| Voltage - Forward (Vf) (Typ) | 2.2 V |
| Wavelength - Dominant | 624 nm |
| Wavelength - Peak | 632 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.63 | |
| 10 | $ 0.39 | |||
| 100 | $ 0.22 | |||
| Digi-Reel® | 1 | $ 0.63 | ||
| 10 | $ 0.39 | |||
| 100 | $ 0.22 | |||
| Tape & Reel (TR) | 1500 | $ 0.17 | ||
| 3000 | $ 0.16 | |||
| 7500 | $ 0.15 | |||
| 10500 | $ 0.14 | |||
| 37500 | $ 0.13 | |||
| 75000 | $ 0.13 | |||
Description
General part information
VLDR1535 Series
Red 624nm LED Indication - Discrete 2.2V 2-SMD, Z-Bend
