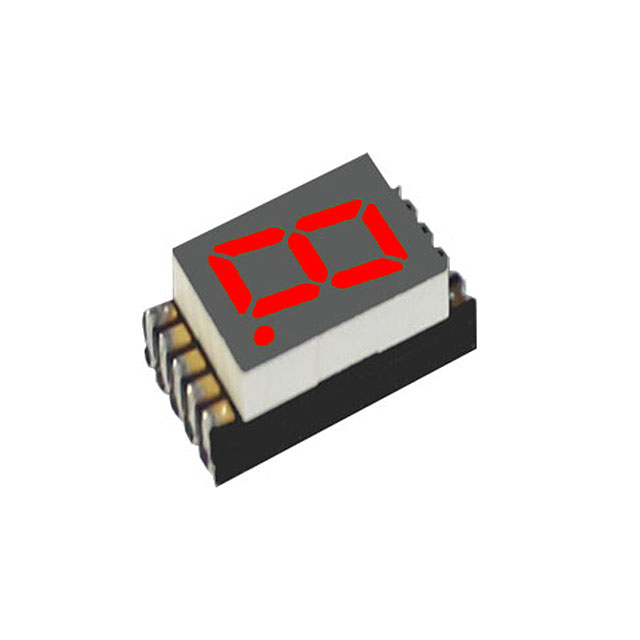

DSM7UA30101T
ActiveVisual Communications Company - VCC
DISPLAY 7-SEG 0.3" SGL RED 10SMD
Deep-Dive with AI
Search across all available documentation for this part.
DSM7UA30101T
ActiveVisual Communications Company - VCC
DISPLAY 7-SEG 0.3" SGL RED 10SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DSM7UA30101T |
|---|---|
| Color | Red |
| Common Pin | Common Anode |
| Current - Test | 20 mA |
| Digit/Alpha Size | 0.3 in |
| Digit/Alpha Size | 7.62 mm |
| Display Type | 7-Segment |
| Millicandela Rating | 15 mcd |
| Number of Characters [custom] | 1 |
| Package / Case | 10-SMD, No Lead |
| Power Dissipation (Max) [Max] | 70 mW |
| Size / Dimension [x] | 0.512 in |
| Size / Dimension [x] | 13 mm |
| Size / Dimension [y] | 0.299 in |
| Size / Dimension [y] | 7.6 mm |
| Size / Dimension [z] | 3.1 mm |
| Size / Dimension [z] | 0.122 in |
| Voltage - Forward (Vf) (Typ) | 2 V |
| Wavelength - Peak | 632 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1350 | $ 2.96 | |
| 2700 | $ 2.83 | |||
Description
General part information
DSM7UA301 Series
Display Modules - LED Character and Numeric Red 7-Segment 1 Character Common Anode 2V 20mA 0.512" H x 0.299" W x 0.122" D (13.00mm x 7.60mm x 3.10mm) 10-SMD, No Lead
Documents
Technical documentation and resources
No documents available
