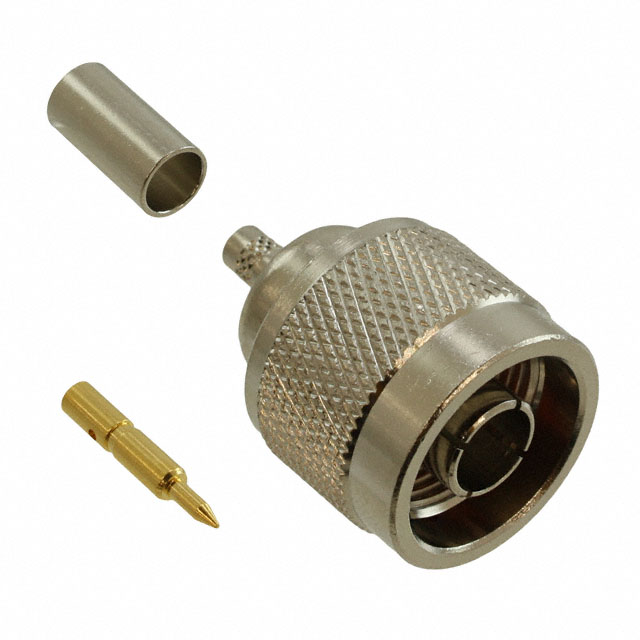

082-5375-RFX

Active

Amphenol RF

CONN N PLUG STR 50 OHM CRIMP

Search across all available documentation for this part.

Active

Amphenol RF

CONN N PLUG STR 50 OHM CRIMP

Technical Specifications

Parameters and characteristics for this part

Specification	082-5375-RFX

Body Finish	Nickel
Body Material	Brass
Cable Group	58C, 9907, 58B, LMR-195, 58A, 303, 141, Belden B7806A, RG-58
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Insertion Loss	0.15 dB
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	1500 V

Part	Cable Group	Impedance	Center Contact Material	Connector Style	Frequency - Max [Max]	Number of Ports	Includes	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Shield Termination	Body Finish	Housing Color	Contact Termination	Body Material	Insertion Loss	Dielectric Material	Connector Type	Center Contact Plating	Mating Cycles	Voltage Rating
Amphenol RF 082-5374	142 142B 223 400 55A 55B RG-55	50 Ohms	Phosphor Bronze	N Type	11 GHz	1	1 Connector 1 Contact 1 Ferrule	Free Hanging (In-Line) Right Angle	-65 ░C	165 °C	Crimp	Nickel	Silver	Crimp Solder	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Gold	500	1500 V
Amphenol RF 082-5375-RFX	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	50 Ohms	Brass	N Type	11 GHz	1	1 Connector 1 Contact 1 Ferrule	Free Hanging (In-Line)	-65 ░C	165 °C	Crimp	Nickel	Silver	Crimp	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	Male Pin Plug	Gold	500	1500 V
Amphenol RF 082-5376	141 303 58A 58B 58C 9907 Belden B7806A LMR-195 RG-58	50 Ohms	Phosphor Bronze	N Type	11 GHz	1		Free Hanging (In-Line)	-65 ░C	165 °C	Crimp	Nickel	Silver	Crimp	Brass	0.15 dB	Polytetrafluoroethylene (PTFE)	Female Socket Jack	Gold	500	1500 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp
