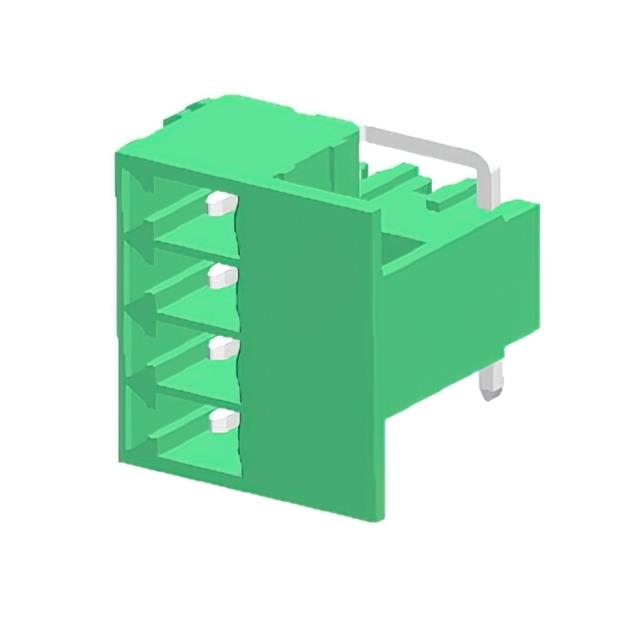

EU0410500000G

Active

Amphenol Anytek

EU 3.5 - 4P BRIGHT TIN PLATED TE

Search across all available documentation for this part.

Active

Amphenol Anytek

EU 3.5 - 4P BRIGHT TIN PLATED TE

Technical Specifications

Parameters and characteristics for this part

Specification	EU0410500000G

null

Part	Header Orientation	Termination Style	Contact Tail Length	Contact Tail Length	Color	Number of Levels	Contact Mating Finish	Current - UL	Voltage - UL	Mounting Type	Positions Per Level	Housing Material	Contact Material	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Type	Pitch [x]	Pitch [x]	Material Flammability Rating
Amphenol Anytek EU0410500000G
Amphenol Anytek EU0410510000G	90° Right Angle	Solder	0.118 in	3 mm	Green	1	Tin	10 A	300 V	Through Hole	4	Thermoplastic	Copper	4	-40 °C	115 °C	Header Male Pins Shrouded (2 Side)	3.5 mm	0.138 in	UL94 V-0

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Position Terminal Block

Technical documentation and resources

No documents available
