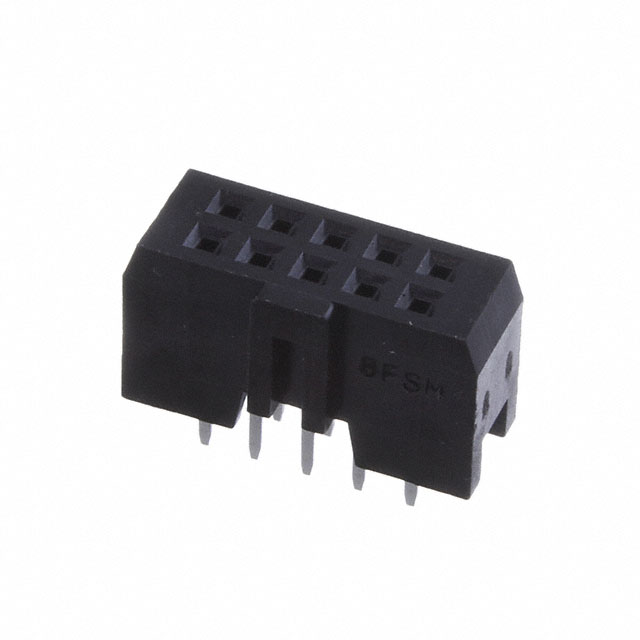

HIF3FB-10DA-2.54DSA(71)

Active

Hirose Electric USA, Inc.

CONN RCPT 10POS 0.1 GOLD PCB

Deep-Dive with AI

DocumentsDatasheet HIF3FB-10DA-2.54DSA(71) Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF3FB-10DA-2.54DSA(71)

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Fastening Type	Push-Pull
Features	Polarizing Key
Insulation Color	Black
Insulation Height	9.5 mm
Insulation Height	0.374 in
Insulation Material	Polybutylene Terephthalate (PBT)
Mated Stacking Heights	12.2 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Board, Cable
Termination	Solder

HIF3FB Series

Part	Insulation Color	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Termination	Mounting Type	Mated Stacking Heights	Contact Finish - Post	Contact Shape	Connector Type	Fastening Type	Style	Insulation Material	Number of Positions	Contact Length - Post	Contact Length - Post	Operating Temperature [Max]	Operating Temperature [Min]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions Loaded	Number of Rows	Applications	Contact Finish - Mating	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Features	Contact Type	Number of Positions
Hirose Electric USA, Inc. HIF3FB-34DA-2.54DSA(71)	Black	0.1 in	2.54 mm	UL94 V-0	2 çm	78.7 çin	Copper Alloy	Solder	Through Hole	12.2 mm	Tin	Square	Receptacle	Push-Pull	Board to Board Cable	Polybutylene Terephthalate (PBT)	34	0.118 in	3 mm	85 °C	-55 °C	2.54 mm	0.1 in	All	2	General Purpose	Gold	9.5 mm	0.374 in	0.203 Ám	8 Áin	Polarizing Key	Female Socket
Hirose Electric USA, Inc. HIF3FB-20DA-2.54DSA(71)	Black	0.1 in	2.54 mm	UL94 V-0	2 çm	78.7 çin	Copper Alloy	Solder	Through Hole	12.2 mm	Tin	Square	Receptacle	Push-Pull	Board to Board Cable	Polybutylene Terephthalate (PBT)	20	0.118 in	3 mm	85 °C	-55 °C	2.54 mm	0.1 in	All	2	General Purpose	Gold	9.5 mm	0.374 in	0.203 Ám	8 Áin	Polarizing Key	Female Socket
Hirose Electric USA, Inc. HIF3FB-10DA-2.54DSA(71)	Black	0.1 in	2.54 mm	UL94 V-0	2 çm	78.7 çin	Copper Alloy	Solder	Through Hole	12.2 mm	Tin	Square	Receptacle	Push-Pull	Board to Board Cable	Polybutylene Terephthalate (PBT)	10	0.118 in	3 mm	85 °C	-55 °C	2.54 mm	0.1 in	All	2	General Purpose	Gold	9.5 mm	0.374 in	0.203 Ám	8 Áin	Polarizing Key	Female Socket
Hirose Electric USA, Inc. HIF3FB-10DA-2.54DSA(69)	Black	0.1 in	2.54 mm	UL94 V-0			Copper Alloy	Solder	Through Hole	12.2 mm		Square	Receptacle	Push-Pull	Board to Board Cable	Polybutylene Terephthalate (PBT)	10	0.118 in	3 mm	85 °C	-55 °C	2.54 mm	0.1 in	All	2	General Purpose	Gold	9.5 mm	0.374 in	0.203 Ám	8 Áin	Polarizing Key	Female Socket
Hirose Electric USA, Inc. HIF3FB-16DA-2.54DSA(71)	Black	0.1 in	2.54 mm	UL94 V-0	2 çm	78.7 çin	Copper Alloy	Solder	Through Hole	12.2 mm	Tin	Square	Receptacle	Push-Pull	Board to Board Cable	Polybutylene Terephthalate (PBT)		0.118 in	3 mm	85 °C	-55 °C	2.54 mm	0.1 in	All	2	General Purpose	Gold	9.5 mm	0.374 in	0.203 Ám	8 Áin	Polarizing Key	Female Socket	16
Hirose Electric USA, Inc. HIF3FB-40DA-2.54DSA(71)	Black	0.1 in	2.54 mm	UL94 V-0	2 çm	78.7 çin	Copper Alloy	Solder	Through Hole	12.2 mm	Tin	Square	Receptacle	Push-Pull	Board to Board Cable	Polybutylene Terephthalate (PBT)	40	0.118 in	3 mm	85 °C	-55 °C	2.54 mm	0.1 in	All	2	General Purpose	Gold	9.5 mm	0.374 in	0.203 Ám	8 Áin	Polarizing Key	Female Socket
Hirose Electric USA, Inc. HIF3FB-60DA-2.54DSA(71)	Black	0.1 in	2.54 mm	UL94 V-0	2 çm	78.7 çin	Copper Alloy	Solder	Through Hole	12.2 mm	Tin	Square	Receptacle	Push-Pull	Board to Board Cable	Polybutylene Terephthalate (PBT)	60	0.118 in	3 mm	85 °C	-55 °C	2.54 mm	0.1 in	All	2	General Purpose	Gold	9.5 mm	0.374 in	0.203 Ám	8 Áin	Polarizing Key	Female Socket
Hirose Electric USA, Inc. HIF3FB-26DA-2.54DSA(71)	Black	0.1 in	2.54 mm	UL94 V-0	2 çm	78.7 çin	Copper Alloy	Solder	Through Hole	12.2 mm	Tin	Square	Receptacle	Push-Pull	Board to Board Cable	Polybutylene Terephthalate (PBT)	26	0.118 in	3 mm	85 °C	-55 °C	2.54 mm	0.1 in	All	2	General Purpose	Gold	9.5 mm	0.374 in	0.203 Ám	8 Áin	Polarizing Key	Female Socket
Hirose Electric USA, Inc. HIF3FB-50DA-2.54DSA(71)	Black	0.1 in	2.54 mm	UL94 V-0	2 çm	78.7 çin	Copper Alloy	Solder	Through Hole	12.2 mm	Tin	Square	Receptacle	Push-Pull	Board to Board Cable	Polybutylene Terephthalate (PBT)	50	0.118 in	3 mm	85 °C	-55 °C	2.54 mm	0.1 in	All	2	General Purpose	Gold	9.5 mm	0.374 in	0.203 Ám	8 Áin	Polarizing Key	Female Socket

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 2.63
		10	$ 2.38
		25	$ 2.26
		40	$ 2.21
		180	$ 2.10
		360	$ 1.84
		540	$ 1.79
		1080	$ 1.52
		2520	$ 1.42

Description

General part information

HIF3FB Series

10 Position Receptacle Connector 0.100" (2.54mm) Through Hole Gold

Documents

Technical documentation and resources

Datasheet

HIF3FB-10DA-2.54DSA(71) Spec
