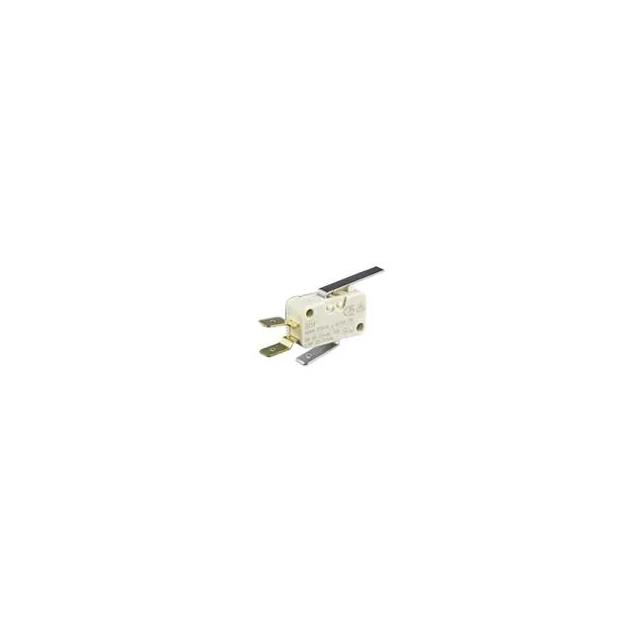

D443-R1RD-G2
ActiveZF Electronics
SWITCH SNAP ACTION SPDT 10A 250V
Deep-Dive with AI
Search across all available documentation for this part.
D443-R1RD-G2
ActiveZF Electronics
SWITCH SNAP ACTION SPDT 10A 250V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | D443-R1RD-G2 |
|---|---|
| Actuator Type | Roller, Lever |
| Circuit | SPDT |
| Current Rating (Amps) | 10 A |
| Differential Travel | 0.8 mm |
| Differential Travel | 0.031 " |
| Electrical Life | 50000 Cycles |
| Features | Explosion Proof |
| Mounting Type | Chassis Mount |
| Operating Force | 147 gf |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.087 in |
| Overtravel | 2.2 mm |
| Pretravel | 3.2 mm |
| Pretravel | 0.125 in |
| Release Force | 41 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 250 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 15 | $ 4.75 | |
| 60 | $ 4.48 | |||
| 510 | $ 4.38 | |||
Description
General part information
D443-R1 Series
Switch SPDT Chassis Mount
