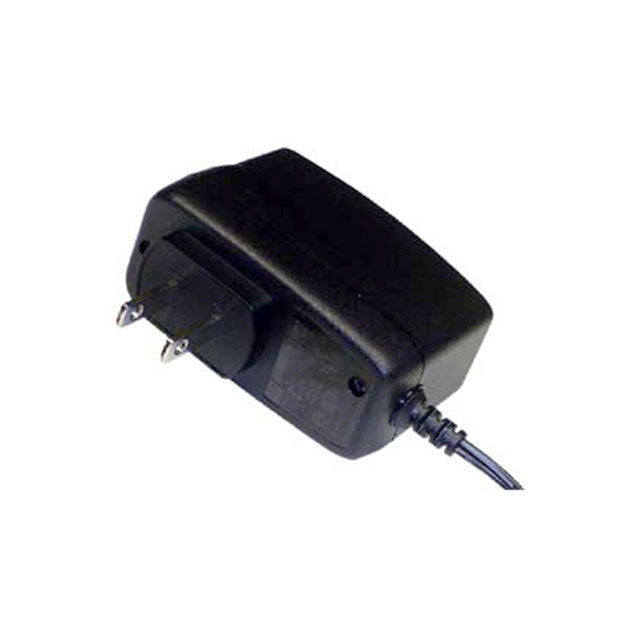

PSAA12A-120L6

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 12V 12W

Search across all available documentation for this part.

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 12V 12W

Technical Specifications

Parameters and characteristics for this part

Specification	PSAA12A-120L6

Applications	ITE (Commercial)
Approval Agency	cULus
Cord Length	1.2 m
Cord Length	47.2 in
Current - Output (Max) [Max]	1 A
Efficiency	CoC Tier 2, Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption [Max]	75 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	Barrel Plug
Output Connector [diameter]	2.1 mm, 5.5 mm
Output Connector [x]	9.5 mm
Polarization	Positive Center
Power (Watts)	12 W
Region Utilized	North America
Size / Dimension [x]	71.2 mm
Size / Dimension [x]	2.8 in
Size / Dimension [y]	34 mm
Size / Dimension [y]	1.34 in
Size / Dimension [z]	46 mm
Size / Dimension [z]	1.81 "
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	12 V
Weight	0.187 lb
Weight	84.82 g

Part	Weight	Weight	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Cord Length	Cord Length	Current - Output (Max) [Max]	No Load Power Consumption [Max]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Applications	Form	Region Utilized	Approval Agency	Efficiency	Polarization	Input Type	Voltage - Input [Min]	Voltage - Input [Max]	Input Connector	Voltage - Output	Output Connector [diameter]	Output Connector [x]	Output Connector	Standard Number
Phihong USA PSAA12A-120L6	0.187 lb	84.82 g	40 °C	0 °C	12 W	1.2 m	47.2 in	1 A	75 mW	34 mm	71.2 mm	46 mm	1.81 "	2.8 in	1.34 in	ITE (Commercial)	Wall Mount (Class II)	North America	cULus	CoC Tier 2 Level VI	Positive Center	Fixed Blade	90 VAC	264 VAC	NEMA 1-15P	12 V	2.1 mm 5.5 mm	9.5 mm	Barrel Plug
Phihong USA PSAA12A-120L6-R-CR1	0.187 lb	84.82 g	40 °C	0 °C	12 W	1.2 m	47.2 in	1 A	75 mW	34 mm	71.2 mm	46 mm	1.81 "	2.8 in	1.34 in	ITE (Commercial)	Wall Mount (Class II)	North America	cULus PSE	CoC Tier 2 Level VI	Positive Center	Fixed Blade	90 VAC	264 VAC	NEMA 1-15P	12 V	2.1 mm 5.5 mm	10 mm	Barrel Plug R/A	55022 60950-1 62368-1

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12V 12 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
