1N5339B_R2_00001
ActivePanjit International Inc.
SILICON ZENER DIODE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
1N5339B_R2_00001
ActivePanjit International Inc.
SILICON ZENER DIODE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 1N5339B_R2_00001 |
|---|---|
| Current - Reverse Leakage @ Vr | 10 µA |
| Impedance (Max) (Zzt) | 1 Ohms |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |

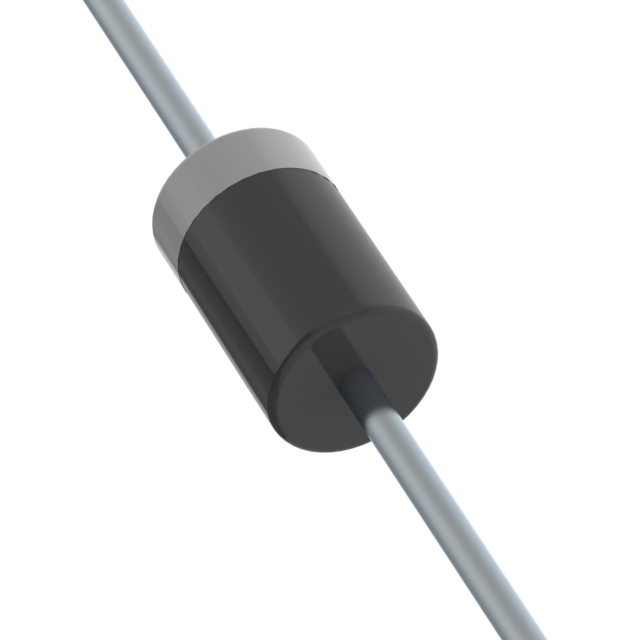

| Package / Case | DO-201AE, Axial |
| Power - Max [Max] | 5 W |
| Supplier Device Package | DO-201AE |
| Tolerance | 5 % |
| Voltage - Zener (Nom) (Vz) | 5.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.68 | |
| 10 | $ 0.42 | |||
| 100 | $ 0.27 | |||
| 500 | $ 0.21 | |||
| Tape & Reel (TR) | 1250 | $ 0.18 | ||
| 2500 | $ 0.16 | |||
| 3750 | $ 0.15 | |||
| 6250 | $ 0.14 | |||
| 8750 | $ 0.14 | |||
| 12500 | $ 0.13 | |||
| 31250 | $ 0.12 | |||
| 62500 | $ 0.12 | |||
Description
General part information
1N5339 Series
Zener Diode 5.6 V 5 W ±5% Through Hole DO-201AE
