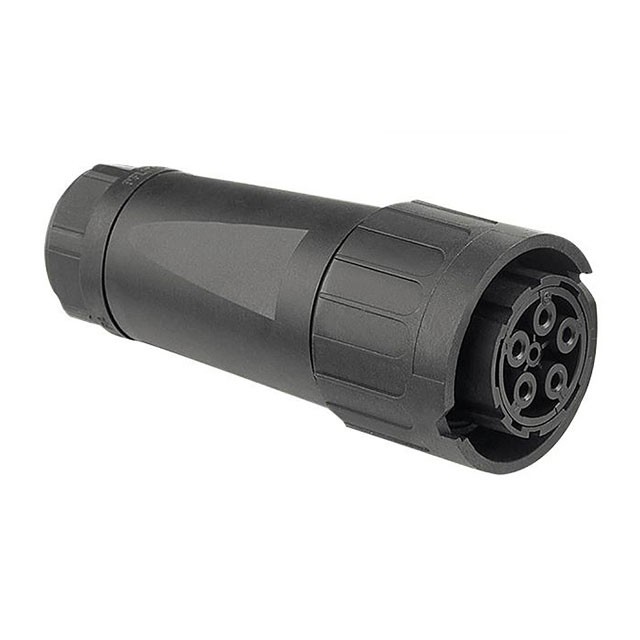

C016 20E004 8002
ActiveAmphenol Tuchel Industrial
CONN PLUG FMALE 5POS SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
C016 20E004 8002
ActiveAmphenol Tuchel Industrial
CONN PLUG FMALE 5POS SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C016 20E004 8002 |
|---|---|
| Connector Type | Female Sockets, Plug |
| Fastening Type | Bayonet Lock |
| Features | Strain Relief |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 5 |
| Operating Temperature [custom] | 100 °C, -25 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Material | Polyamide (PA66), Nylon 6/6 |
| Shell Size - Insert | 2 |
| Termination | Screw |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.24 | |
| 10 | $ 32.61 | |||
| 25 | $ 31.20 | |||
| 50 | $ 30.19 | |||
| 100 | $ 29.19 | |||
| 250 | $ 27.58 | |||
Description
General part information
C016 20E004 Series
5 (4 + PE) Position Circular Connector Plug, Female Sockets Screw
