Q-07013000R001M

Active

Amphenol Custom Cable

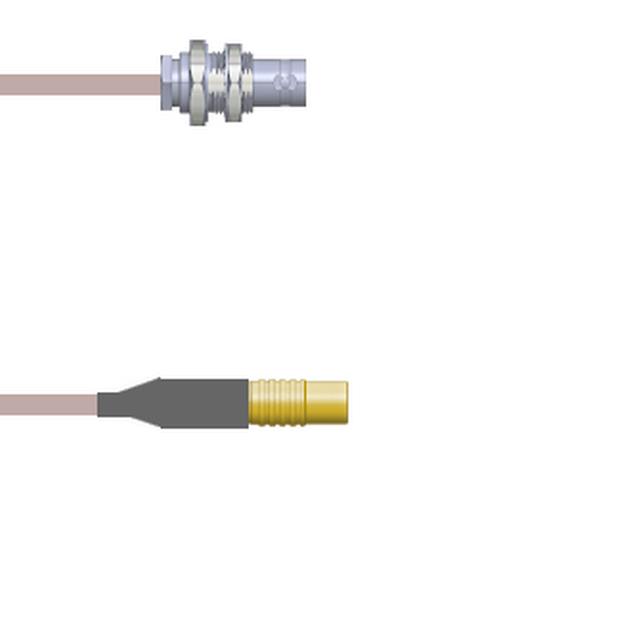

CBL ASSY BNC-MCX JACK-JACK 3.3'

Deep-Dive with AI

Search across all available documentation for this part.

Q-07013000R001M

Active

Amphenol Custom Cable

CBL ASSY BNC-MCX JACK-JACK 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-07013000R001M

1st Connector	BNC Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	MCX Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	2 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	BNC to MCX

Q-070130 Series

Part	Frequency - Max [Max]	Style	2nd Connector Mounting Type	1st Contact Gender	Length	Length	Length	Features	1st Connector	Overall Impedance	2nd Contact Gender	Cable Type	1st Connector Mounting Feature	Color	1st Connector Mounting Type	2nd Connector	Length [x]	Length [x]	Length [x]
Amphenol Custom Cable Q-07013000R060i	2 GHz	BNC to MCX	Free Hanging (In-Line)	Female	5 ft	1.5 m	5 '	Shielded	BNC Jack	50 Ohms	Female	RG-316 DB	Bulkhead - Front Side Nut	Copper	Panel Mount	MCX Jack
Amphenol Custom Cable Q-07013000R003M	2 GHz	BNC to MCX	Free Hanging (In-Line)	Female	9.8 '	3 m	118.1 in	Shielded	BNC Jack	50 Ohms	Female	RG-316 DB	Bulkhead - Front Side Nut	Copper	Panel Mount	MCX Jack
Amphenol Custom Cable Q-07013000R001M	2 GHz	BNC to MCX	Free Hanging (In-Line)	Female	3.3 ft	1 m	39.4 in	Shielded	BNC Jack	50 Ohms	Female	RG-316 DB	Bulkhead - Front Side Nut	Copper	Panel Mount	MCX Jack
Amphenol Custom Cable Q-07013000R048i	2 GHz	BNC to MCX	Free Hanging (In-Line)	Female	4 ft	1200 mm	48 in	Shielded	BNC Jack	50 Ohms	Female	RG-316 DB	Bulkhead - Front Side Nut	Copper	Panel Mount	MCX Jack
Amphenol Custom Cable Q-07013000R018i	2 GHz	BNC to MCX	Free Hanging (In-Line)	Female				Shielded	BNC Jack	50 Ohms	Female	RG-316 DB	Bulkhead - Front Side Nut	Copper	Panel Mount	MCX Jack	457.2 mm	457.2 mm
Amphenol Custom Cable Q-07013000R012i	2 GHz	BNC to MCX	Free Hanging (In-Line)	Female		304.8 mm	12 "	Shielded	BNC Jack	50 Ohms	Female	RG-316 DB	Bulkhead - Front Side Nut	Copper	Panel Mount	MCX Jack
Amphenol Custom Cable Q-07013000R006i	2 GHz	BNC to MCX	Free Hanging (In-Line)	Female		152.4 mm	6 in	Shielded	BNC Jack	50 Ohms	Female	RG-316 DB	Bulkhead - Front Side Nut	Copper	Panel Mount	MCX Jack
Amphenol Custom Cable Q-07013000R.25M	2 GHz	BNC to MCX	Free Hanging (In-Line)	Female				Shielded	BNC Jack	50 Ohms	Female	RG-316 DB	Bulkhead - Front Side Nut	Copper	Panel Mount	MCX Jack		250 mm	9.843 "
Amphenol Custom Cable Q-07013000R.75M	2 GHz	BNC to MCX	Free Hanging (In-Line)	Female		750 mm	29.53 "	Shielded	BNC Jack	50 Ohms	Female	RG-316 DB	Bulkhead - Front Side Nut	Copper	Panel Mount	MCX Jack
Amphenol Custom Cable Q-07013000R002M	2 GHz	BNC to MCX	Free Hanging (In-Line)	Female	6.6 ft	2 m	78.7 in	Shielded	BNC Jack	50 Ohms	Female	RG-316 DB	Bulkhead - Front Side Nut	Copper	Panel Mount	MCX Jack

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 213.68
		25	$ 209.53
		50	$ 205.38
		100	$ 201.22
		250	$ 197.07

Description

General part information

Q-070130 Series

Cable Assembly Coaxial BNC to MCX RG-316 DB 39.4" (1.0m) 3.3'
