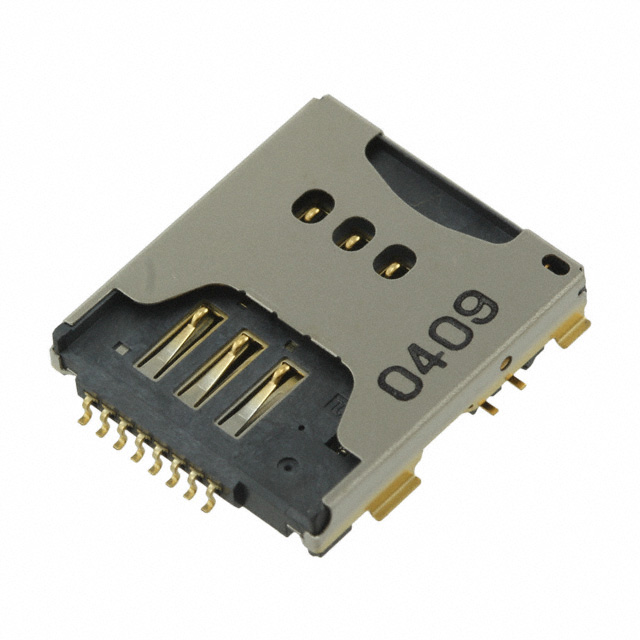

ST7S014V4BR800
ObsoleteJAE Electronics
CONN MICRO SD/SIM CARD PUSH-PUSH
Deep-Dive with AI
Search across all available documentation for this part.
ST7S014V4BR800
ObsoleteJAE Electronics
CONN MICRO SD/SIM CARD PUSH-PUSH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ST7S014V4BR800 |
|---|---|
| Card Type | Combo - microSD™, SIM |
| Connector Type | Connector and Ejector |
| Contact Finish | Gold |
| Contact Finish Thickness | 0.51 µm |
| Contact Finish Thickness | 20 µin |
| Features | Switch |
| Height Above Board [z] | 3.2 mm |
| Height Above Board [z] | 0.126 in |
| Insertion, Removal Method | Push Out, Push In |
| Mounting Feature | Reverse - Bottom |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 18 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
ST7S014 Series
18 (14 + 4) Position Card Connector Combo - microSD™, SIM Surface Mount, Right Angle Gold
