100025314
ActiveTelegartner Inc

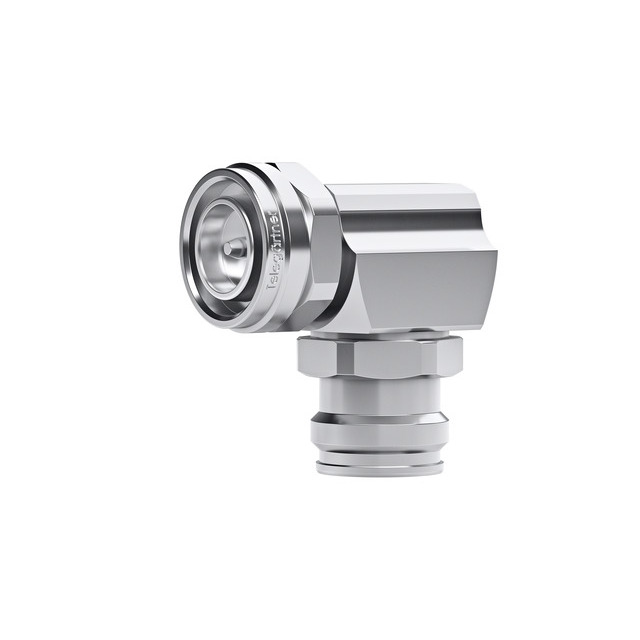

4.3-10 ANGLE ADAPTER PUSH M-F
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
100025314
ActiveTelegartner Inc
4.3-10 ANGLE ADAPTER PUSH M-F
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 100025314 |
|---|---|
| Adapter Series [Max] | 4.3/10 |
| Adapter Series [Min] | 4.3/10 |
| Adapter Type | Plug to Jack |
| Body Finish | White Bronze |
| Body Material | Brass |
| Center Contact Material | Copper Alloy |
| Center Contact Plating | Silver |
| Conversion Type | Same Series |
| Convert From (Adapter End) | 4.3/10 Jack, Female Socket |
| Convert To (Adapter End) | 4.3/10 Plug, Male Pin |
| Dielectric Material | Polytetrafluoroethylene (PTFE) |
| Frequency - Max [Max] | 6000 MHz |
| Impedance | 50 Ohms |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line), Right Angle |
| Style | Right Angle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 82.99 | |
| 5 | $ 78.84 | |||
| 10 | $ 74.69 | |||
| 25 | $ 71.37 | |||
| 50 | $ 65.56 | |||
| 100 | $ 63.90 | |||
| 250 | $ 60.17 | |||
Description
General part information
J01442A3 Series
Adapter Coaxial Connector 4.3/10 Jack, Female Socket To 4.3/10 Plug, Male Pin 50 Ohms
