GN2406-INE3

Active

Semtech Corporation

CLOCK & DATA RECOVERY IC, 10.95 GBPS, 3.3 V, 48 PINS, QFN

Search across all available documentation for this part.

Active

Semtech Corporation

CLOCK & DATA RECOVERY IC, 10.95 GBPS, 3.3 V, 48 PINS, QFN

Technical Specifications

Parameters and characteristics for this part

Specification	GN2406-INE3

Differential - Input:Output [custom]	True
Differential - Input:Output [custom]	True
Input	Clock
Main Purpose	Ethernet, InfiniBand
Mounting Type	Surface Mount
Number of Circuits	1
Output	Clock

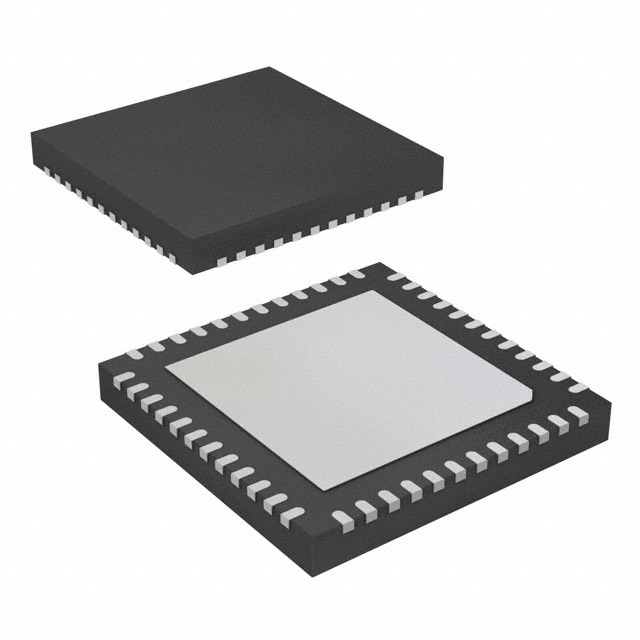

Package / Case	48-QFN
PLL	False
Ratio - Input:Output	4:4
Supplier Device Package	48-QFN (7x7)
Voltage - Supply	3.3 V

Part	Output	Main Purpose	Input	Differential - Input:Output [custom]	Differential - Input:Output [custom]	Mounting Type	PLL	Package / Case	Voltage - Supply	Number of Circuits	Ratio - Input:Output	Supplier Device Package
Semtech Corporation GN2406-INE3	Clock	Ethernet InfiniBand	Clock			Surface Mount		48-QFN	3.3 V	1	4:4	48-QFN (7x7)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Automatic locking from 9.95Gb/s to 11.3Gb/s

Automatic rate detect for quarter rate (2.5Gb/s) and half rate (5Gb/s) modes

Re-timer bypass Up to 11.3Gb/s
