10360120001

Active

HARTING Technology Group

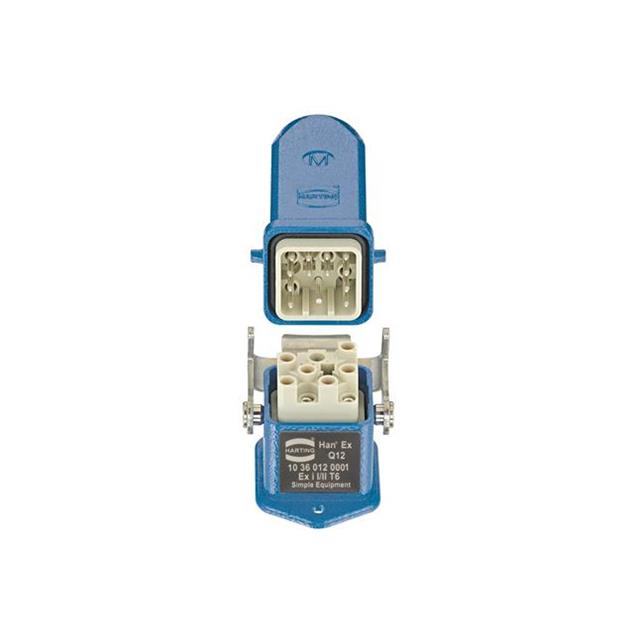

CONNECTOR KIT, INDUSTRIAL, HAN EX Q12 SIZE 3A PLUG & RECEPTACLE HOUSINGS, INSERTS & HOODS

Search across all available documentation for this part.

Active

HARTING Technology Group

CONNECTOR KIT, INDUSTRIAL, HAN EX Q12 SIZE 3A PLUG & RECEPTACLE HOUSINGS, INSERTS & HOODS

Technical Specifications

Parameters and characteristics for this part

Specification	10360120001

Contents	Cable and Panel Connector Assembly
Number of Positions	12
Size	3 A
Style	Top-Hood, Bottom-Base
Termination Style	Crimp
Thread Size	M20

Part	Termination Style	Number of Positions	Contents	Style	Thread Size	Size
HARTING Technology Group 10360120002	Crimp	12	Cable and Panel Connector Assembly	Bottom-Base Side-Hood	M20	3 A
HARTING Technology Group 10360120001	Crimp	12	Cable and Panel Connector Assembly	Bottom-Base Top-Hood	M20	3 A
HARTING Technology Group 10360120003	Crimp	12	Cable and Panel Connector Assembly	Side-Base Top-Hood	M20	3 A
HARTING Technology Group 10360120004	Crimp	12	Cable Connector Assembly	Top Entry	M20	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Cable and Panel Connector Assembly Top-Hood, Bottom-Base M20 Crimp
