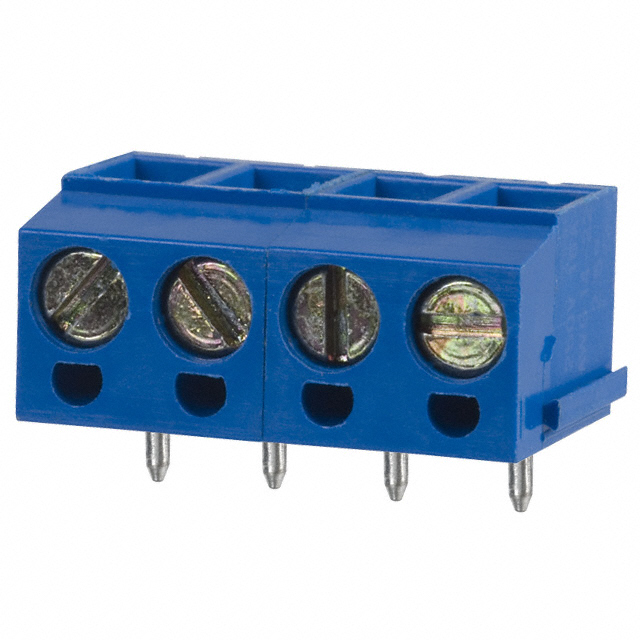

OSTTB042161
ActiveOn Shore Technology Inc.
TERM BLK 4POS TOP ENT 5.08MM PCB
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
OSTTB042161
ActiveOn Shore Technology Inc.
TERM BLK 4POS TOP ENT 5.08MM PCB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | OSTTB042161 |
|---|---|
| Clamp Material - Plating | Stainless, Steel |
| Color | Blue |
| Contact Material - Plating [custom] | Tin Plated |
| Current | 15 A |
| Features | Interlocking (Side) |
| Housing Material | Thermoplastic |
| Mating Orientation | Vertical with Board |
| Mounting Type | Through Hole |
| Number of Levels | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -30 ░C |
| Pitch [x] | 0.2 in |
| Pitch [x] | 5.08 mm |
| Positions Per Level | 4 |
| Screw Material - Plating | Steel, Zinc Plated |
| Screw Thread | M3 |
| Torque - Screw | 0.4 Nm |
| Torque - Screw | 3.5 Lb-In |
| Wire Gauge [Max] | 22 AWG |
| Wire Gauge [Min] | 14 AWG |
| Wire Termination | Screw - Leaf Spring, Wire Guard |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.70 | |
| 10 | $ 1.29 | |||
| 25 | $ 1.20 | |||
| 50 | $ 1.07 | |||
| 100 | $ 1.05 | |||
| 250 | $ 0.92 | |||
| 500 | $ 0.84 | |||
| 1000 | $ 0.76 | |||
| 5000 | $ 0.67 | |||
Description
General part information
OSTTB04 Series
4 Position Wire to Board Terminal Block Vertical with Board 0.200" (5.08mm) Through Hole
